Over the past few years, 48V magnetic track lighting systems have become one of the most popular solutions for modern lighting in homes, offices, and commercial spaces. They offer a clean, minimalist look, the ability to easily rearrange fixtures without altering the electrical wiring, and a high degree of flexibility in lighting design. It is therefore no surprise that today they are used not only by architects and designers, but increasingly by owners of single-family homes and apartments as well.
But with this growing popularity comes a host of questions. How do 48V magnetic tracks work? What’s the difference between surface-mounted, recessed, and trimless tracks? Can a track be cut to the desired length? How do you choose the right power supply, connectors, or compatible lighting? And are systems individual systems from different manufacturers even compatible?
In this comprehensive guide, you’ll find answers to all your important questions. We’ll explain how magnetic track systems work, what they consist of, how to design them properly, what to watch out for during installation, and what mistakes to avoid. Thanks to practical tips, diagrams, and recommendations, you’ll have all the information you need in one place—whether you’re choosing your first magnetic track or planning a larger project.
What You'll Learn in This Article
- ✔ How 48V magnetic track systems work and why they’re becoming increasingly popular.
- ✔ What is the difference between surface-mounted, recessed, trimless, and suspended light tracks?
- ✔ How to choose lighting right lighting, power supply, and necessary accessories.
- ✔ How to properly design, cut, and connect a magnetic track using connectors.
- ✔ What mistakes to avoid during design and installation.
Article Content
- What is a 48V magnetic track system?
- Where are 48V magnetic tracks most commonly used?
- What does the magnetic system consist of?
- Types of Magnetic track and Their Uses
- What lighting can be used with magnetic track
- How to Design a Magnetic Track System
- Installation, cutting, and joining of magnetic track
- Common Mistakes in Design and Installation
- Frequently Asked Questions (FAQ)
What is a 48V magnetic track system?
Magnetic 48V track lighting systems are a modular lighting solution consisting of a track, a power supply, and interchangeable light fixtures. Thanks to the magnetic mounting, individual modules can be moved, added, or replaced at any time without requiring any changes to the electrical wiring.
Unlike traditional light fixtures, which have fixed locations, magnetic tracks offer a high degree of flexibility in both design and future interior modifications. A single track can combine spotlights, linear lighting, pendant modules, or wall washers to create general, task, and accent lighting.
The entire system operates on a safe 48 V (SELV) voltage, provided by a power supply that converts standard 230 V. This allows tracks and lighting to be very slim while supporting modern dimming methods and smart lighting control.
When choosing lighting fixtures, it’s not enough to consider only their wattage. Luminous flux (lumens), color rendering index (CRI), and the correct color temperature (CCT) also play an important role, as they have a significant impact on the overall lighting comfort.
Why are 48V magnetic tracks so popular?
- A minimalist design without any distracting elements.
- You can add or move lighting at any time.
- A combination of several types of lighting in a single rail.
- A wide range of applications for both residential and commercial spaces.
- Safe low voltage suitable for modular lighting systems.
- Support for modern dimming methods and smart lighting control.
Where are 48V magnetic tracks most commonly used?
One of the biggest advantages of magnetic 48V track lighting systems is their versatility. Thanks to a wide selection of fixtures and the ability to reposition or add them at any time, they are suitable for almost any interior. The same system can provide general lighting for a room, highlight specific areas, or create a pleasant atmosphere according to your current needs.
It is precisely this flexibility that explains why magnetic tracks are becoming increasingly common not only in modern homes, but also in offices, restaurants, hotels, and commercial spaces.
If you're looking for inspiration for a specific type of interior, we also recommend our guides to living room lighting, bathroom lighting, or our article on kitchen countertop lighting.
🏡 Single-family homes and apartments
The ideal solution for open living spaces, where spotlights, linear lighting, and pendant lights can be combined. Thanks to the modular system, the lights can be easily adapted to changes in the layout or new interior furnishings.
🍽️ Kitchens and dining rooms
Magnetic tracks allow you to precisely illuminate your workspace, kitchen island, and dining table. By combining different types of lights, you can create both a functional and pleasant atmosphere.
🛋️ Living Rooms
In the living room, magnetic track make it easy to combine general lighting, accent lighting, and decorative pendant lighting. The result is a pleasantly lit space for everyday life and relaxation.
🏢 Offices
When rearranging work desks, there is no need to change the electrical wiring. Simply adjust the placement of the lights in the track, which makes future modifications to the office space much easier.
🛍️ Showrooms and stores
Accent spotlights can be easily directed at displayed products or moved at any time to suit the current display. This is one of the reasons why magnetic systems are popular in retail stores.
🏨 Hotels and restaurants
Their elegant appearance, dimmable features, and the ability to combine different types of fixtures help create a pleasant atmosphere in lobbies, restaurants, bars, and hotel rooms.
What does the 48V magnetic track system consist of?
At first glance, the magnetic track system may seem complicated, but in reality it consists of only a few basic components. Each one has its own important function, and together they form a flexible system that can be gradually expanded or modified to suit the needs of any interior.
When choosing a magnetic system, it’s helpful to know what each component is used for. This will make it much easier to design the right configuration and understand how the entire system works.
Magnetic strip
The magnetic track forms the basis of the entire system. It serves as a support structure into which individual lighting are installed using magnetic attachments, while also providing power to them. Depending on the installation method, you can choose between surface-mounted, recessed, trimless, or suspended rails, allowing the system to be adapted to almost any type of interior. The right choice of rail affects not only the appearance but also the installation options and future expansion of the system.
Power supply
The power supply converts standard 230 V AC line voltage to a safe 48 V, which powers the entire system. Its output must match the total power consumption of all the lights and should also include a power reserve for potential future system expansion. We’ll discuss how to choose the right power supply in detail in the next section of this article.
Lighting
The biggest advantage of magnetic track is the ability to combine multiple types of fixtures on a single track. The most commonly used fixtures are spotlights, linear lighting, pendant lighting, and wall washers, which can be moved, added, or replaced at any time to suit the current needs of the interior. Thanks to this, a single system can provide general, accent, and decorative lighting.
Connectors and Power Modules
Using connectors, you can create straight lines as well as more complex shapes tailored precisely to the layout of the room. Straight connectors, L-, T-, or X-shaped corner connectors, and flexible connectors are available. Power modules then ensure that electricity is supplied to the entire system.
End caps and accessories
The system is complemented by track end caps, suspension cable sets, mounting hardware, and components for dimming and smart lighting control. Although these are smaller parts, they have a significant impact on the functionality, safety, and overall appearance of the entire installation.
Although it may seem that the magnetic system consists of many different parts, it is actually a modular kit. Once you understand how the individual components work, designing and expanding the system will be much easier for you.
Good to Know
Although most magnetic systems use a safe 48 V voltage, components from different manufacturers may not be compatible with one another. Rails, lighting, power supplies, and connectors may differ in dimensions, mounting methods, or electrical connections. When designing a system, we therefore recommend using components from a single manufacturer or verifying their compatibility in advance.
Types of Magnetic track and Their Uses
When selecting a 48V magnetic system, one of the most important decisions is choosing the right type tracks. The individual options differ primarily in terms of mounting method, final appearance, and installation complexity. Functionally, they are all very similar—the difference lies mainly in how the track looks in the interior and the types of structures to which it can be mounted.
You’ll most commonly encounter four basic types: surface-mounted, recessed, trimless, and magnetic track lighting. Each has its own advantages and is suitable for different applications.
Surface strip light
Surface-mounted magnetic tracks are installed directly on the ceiling or wall, so they require no structural modifications or suspended ceilings. They are ideal for renovations, finished interiors, or anywhere where it is not possible to alter the ceiling structure.
Best suited for:
Recessed track
Recessed magnetic tracks are embedded in the ceiling structure, so that only the light profile is visible once installation is complete. This gives them a very elegant look and allows them to blend seamlessly into the interior architecture.
Best suited for:
Trimless strip
The trimless strip has no visible frame and, once the ceiling has been finished, blends almost seamlessly with its surface. It requires careful preparation during construction, but the result is an exceptionally elegant detail used primarily in premium interiors.
Best suited for:
Pendant rail
Suspended magnetic tracks are mounted on cables beneath the ceiling and, in addition to providing lighting, also serve as a striking design element. They bring light closer to work or dining areas and help visually divide larger spaces.
Best suited for:
Not sure which option to choose? For renovations and finished interiors, we primarily recommend surface-mounted tracks, which do not require any structural modifications. If you’re building a new home or planning a drywall ceiling, the best choice is usually recessed or trimless tracks, which create a clean architectural detail. In taller rooms, above kitchen islands, or over dining tables, suspended magnetic tracks stand out best.
What lighting can be used with magnetic track
One of the greatest advantages of magnetic 48V track systems is the ability to combine different types of fixtures on tracks single tracks. This means you don’t have to choose just one type of lighting—instead, you can create a system that provides general lighting for the room, highlights selected interior elements, and creates a pleasant atmosphere.
Individual lighting can also be moved, added, or replaced at any time without altering the electrical wiring. It is precisely this modularity that is one of the main reasons why magnetic track systems are becoming increasingly popular in both homes and commercial spaces.
Magnetic tracks are ideal for layered lighting, which combines general, task, and accent lighting in a single system. We discuss this principle in more detail in the article “How to Combine Different Types of Lighting in an Interior.”
| lighting Type | Main advantage | Ideal for use |
|---|---|---|
| Spotlights | Adjustable lighting for highlighting specific areas or objects. | Living rooms, kitchens, galleries, showrooms, paintings, and decorations. |
| Linear lighting | Even and pleasant lighting for most of the space. | Main lighting for living rooms, offices, hallways, and kitchens. |
| Pendant lighting | They bring light closer to the workspace while also serving as a striking design element. | Dining tables, kitchen islands, reception areas, or conference rooms. |
| Wall Washer | It evenly illuminates the walls and makes the space appear larger. | Galleries, showrooms, hotels, decorative walls, or storefronts. |
| Decorative and specialty lighting | They create ambiance and allow for flexible light direction. | Modern homes, offices, restaurants, and high-end commercial spaces. |
Recommended lighting combinations
For best results, combine several types of light fixtures on a single magnetic rail. Each type serves a different purpose, and together they create lighting that is both pleasant and functional.
- Living room: linear lighting + spotlights.
- Kitchen: linear lighting + light pendant light above the kitchen island.
- Dining room: pendant light + spotlights.
- Office: primarily linear lighting for uniform illumination.
- Showroom or gallery: spotlights + wall washers.
How to Design a Magnetic Track System
When designing a magnetic system, ask yourself these 5 questions
Will it be a main living room, kitchen, office, or showroom? The purpose of the space determines both the intensity and character of the lighting.
Do you already have a finished ceiling or a drywall ceiling, or are you still in the construction phase? Depending on your situation, you can choose surface-mounted, recessed, trimless, or suspended tracks.
Plan the placement of light fixtures based on furniture and functional zones, not just the room’s geometry. Lighting should reflect how the space is used.
Add up the power ratings of all the lights and select a power supply with approximately a 20% power reserve to ensure reliable operation.
If you plan to add more lighting or extend the track in the future, make sure to leave some headroom in the power supply and some free space in the system.
We also apply the same principles of lighting fixture placement when designing living room lighting, where dividing the space into individual lighting zones plays a major role.
How to Properly Arrange lighting
When designing a magnetic mounting system, do not place lighting solely based on regular spacing. It is much more important that the lighting corresponds to how each part of the room is used. Each zone has different requirements for both the intensity and direction of the lighting.
| Space | Recommended Solution |
|---|---|
| Living Room | Linear lighting complemented by spotlights to highlight furniture or artwork. |
| Kitchens | Linear work area lighting and pendant lighting above an island or dining table. |
| Dining Room | A statement pendant light complemented by spot or linear lighting. |
| Office | Primarily linear lighting for uniform illumination of workspaces. |
| Showroom or store | A combination of spotlights and wall washers to highlight products. |
The advantage of magnetic track is that you can adjust the placement of the lights at any time to accommodate changes in the interior layout or new furnishings. You don’t have to tamper with the electrical wiring or replace the entire system.
How to Properly Size a Power Supply
The power supply converts the 230 V mains voltage to a safe 48 V, and its power rating must match the total power consumption of all connected lights. It is recommended to allow for approximately a 20% power reserve, which will ensure the system operates reliably and also allow for potential future expansion.
2 linear light ......... 2 × 20 W = 40 W
1 pendant light ................. 15 W
Total power consumption ....................... 95 W
20% margin ......................... 19 W
Recommended power supply: 120 W
If you plan to expand the system with additional lighting over time, it’s worth choosing a more powerful power supply right from the start. This way, you’ll avoid having to replace it every time you make changes to your lighting.
The best designs for magnetic track lighting systems aren’t based on the length tracks, but on how the space is used. First, determine where you’ll need general, task, and accent lighting, and only then select specific lighting. Thanks to its modular design, the system can be easily adapted to a new interior layout in the future.
Installation, cutting, and joining of magnetic track
Installing the 48V magnetic system itself is not complicated, provided it is planned correctly. The biggest difference compared to conventional light fixtures is that the lighting infrastructure—that is, the track—is installed first, and only then are lighting individual lighting mounted onto it. This allows the entire system to be modified at any time without altering the electrical wiring.
Nevertheless, it’s worth taking the time to plan carefully. Properly designed track lengths, power supply placement, and the selection of appropriate connectors will significantly simplify installation and any future system expansions.
Plan your tracks route
Consider the length track, the location of the power source, and the placement of individual light fixtures. The lighting should follow the functional zones of the room, not just its shape.
Install the rail
Depending on the type tracks you choose, install it as a surface-mounted, recessed, trimless, or suspended installation. It is important to position the profile precisely and follow the manufacturer’s recommendations.
Connect the power supply
The power supply converts 230 V AC to a safe 48 V. Its power output must match the total power consumption of all light fixtures, including the recommended reserve.
Connect tracks individual tracks
Using connectors, you can create straight lines, corners, and even more complex configurations tailored precisely to the layout of the room. Proper connections ensure mechanical strength and a reliable power supply.
Add lighting
Simply insert lighting individual lighting into tracks magnetic tracks and arrange them according to your design. You can move them or add additional modules at any time in the future.
Test the entire system
After completing the installation, check that all light fixtures, dimmers, and the power supply are functioning properly. It’s also a good idea to verify that there is sufficient power reserve.
Can the magnetic rail be shortened?
Yes. Most aluminum magnetic track can be cut to the desired length using a saw suitable for aluminum profiles. After cutting, be sure to carefully clean the strip of any metal shavings and check that the conductive parts and magnetic elements have not been damaged.
Since individual systems may differ in design, we recommend always following the specific manufacturer’s installation instructions. For some systems, there may be specified minimum lengths or locations where the track can be safely cut to size.
What connectors are available?
Using connectors, you can create simple straight lines as well as extensive lighting arrangements that follow the layout of the interior. Choosing the right connector depends on the desired direction of track track track.
| Connector type | Usage |
|---|---|
| Straight connector | For extending two track in a straight line. |
| L connector | Connecting track at a right angle. |
| T-connector | Creating a three-way splitter. |
| X connector | Connecting four track to form a cross. |
| Flexible connector | For atypical angles or irregular shapes. |
If you’re unsure about your future interior layout, it’s best to choose a longer track with several open slots for lighting. Thanks to its modular design, you can easily expand your lighting system in the future without having to make any changes to the ceiling or electrical wiring.
Common Mistakes in the Design and Installation of Magnetic track
Magnetic 48V track systems are highly flexible, yet the same mistakes are often made during their design and installation. The good news is that most of these mistakes can be easily avoided as early as the planning phase. If you keep the following recommendations in mind, you’ll end up with a more reliable system and better lighting comfort.
⚠️ Under-rated power supply
Common mistake: The power supply is selected based strictly on the current power consumption of the lights, without any margin.
Recommendation: Allow for at least a 20% power reserve. This will ensure the power supply isn’t operating at its limit, and you’ll be able to easily expand the system in the future.
⚠️ Improper placement of light fixtures
Common mistake: Lighting are spaced only according to the length of tracks or at regular intervals.
Recommendation: Always design lighting based on the placement of furniture, work surfaces, and individual zones within the room. The function of the space should determine the placement of the lights.
⚠️ Combining components from different manufacturers
Common mistake: Track systems, lighting, or connectors come from different manufacturers and are not compatible with each other.
Recommendation: If you haven't verified compatibility, use components from a single manufacturer. This will help you avoid problems during installation and operation.
⚠️ Incorrectly selected tracks type
Common mistake: The type tracks does not match the ceiling structure or the stage of construction.
Recommendation: Surface-mounted tracks are ideal for renovations, while recessed and trimless systems are best suited for new construction or projects involving drywall ceilings.
⚠️ Lack of dimming and smart control
Common mistake: People don’t start thinking about how to control the lighting until after the electrical installation is complete.
Recommendation: If you plan to adjust the light intensity, we recommend reading the article “Dimmable Lighting—Types, How It Works, and Proper Installation.”
⚠️ Lack of room for future expansion
Common mistake: The entire system is designed precisely to meet current needs, with no option to add additional light fixtures.
Recommendation: If space allows, leave some headroom in the power supply’s capacity and keep a few slots free in the rail. This will make future modifications much easier.
Many of these mistakes aren’t limited to magnetic track. We’ve also described them in more detail in the article “The Most Common Mistakes in Interior Lighting.”
A well-designed magnetic system should take into account not only current needs but also future changes to the interior. It’s worth spending more time planning the placement of light fixtures, properly sizing the power supply, and selecting compatible components. This will ensure you have lighting that is functional, reliable, and ready for future expansion.
Frequently Asked Questions (FAQ)
How does the 48V magnetic track system work?
The power supply converts the 230 V mains voltage to a safe 48 V, which powers the magnetic track. Individual lighting are installed onto the track using a magnetic mounting system and can be moved, added, or replaced at any time without requiring any changes to the electrical wiring.
Is the 48V magnetic system safe?
Yes. Magnetic track systems operate at a safe low voltage of 48 V (SELV), which allows for safer handling of the fixtures than systems powered directly by 230 V mains voltage.
Can lighting on the magnetic rail be moved at any time?
Yes. The ability to easily change the layout of the lights is one of the main advantages of magnetic track systems. Lighting can be moved, added, or replaced with other types as needed.
Can the magnetic strip be cut to the desired length?
In most cases, yes. Aluminum tracks can be cut to the required length, but it is always necessary to follow the manufacturer’s recommended procedure and carefully clean the rail of metal shavings after cutting.
Are magnetic tracks different manufacturers compatible?
Not always. Although most systems use 48 V, the dimensions track, the method of mounting the fixtures, and the electrical connections may vary. It is safest to use components from a single manufacturer or to verify compatibility in advance.
How to Choose the Right Power Supply?
Add up the power consumption of all planned light fixtures and select a power supply with approximately a 20% power reserve. This will ensure that the system operates reliably and remains ready for any future expansion.
What types of lighting can be used with magnetic track?
The most commonly used types include spotlights, linear lighting, pendant modules, wall washers, and decorative lighting. Individual types can be freely combined within tracks single tracks.
Are magnetic track lighting systems suitable for single-family homes and apartments?
Yes. Magnetic tracks are commonly used today in living rooms, kitchens, dining rooms, hallways, and bedrooms. Thanks to their minimalist look and high flexibility, they are among the most popular modern ways to light interiors.
Can magnetic tracks be dimmed?
Yes. Many systems support dimming and smart lighting control using technologies such as DALI, Casambi, or other smart home systems. The specific options depend on the power supply and light fixtures used.
How long can a single magnetic strip be?
Individual tracks can be connected to one another using connectors to create very long lighting assemblies. The maximum length depends primarily on the specific system, the power supply’s output, and the manufacturer’s recommendations.
What is the lifespan of magnetic track systems?
tracks aluminum tracks themselves have a very long service life. Over the years, typically only the LED modules or power supplies are replaced, while the system’s structure remains intact.
Is it worth investing in a 48V magnetic system?
If you’re looking for a modern, flexible, and long-term adaptable lighting solution, 48V magnetic track systems are among the best options. They offer an elegant design, easy adjustment of fixture placement, and extensive options for future expansion.
Choose a 48V magnetic system for your interior
Whether you’re looking for magnetic tracks, designer spotlights, or a full range of accessories to build your own system, you’ll find everything in one place here. Browse the individual categories and design lighting that’s exactly to your liking.
Share:
How to properly place spot lights in a room

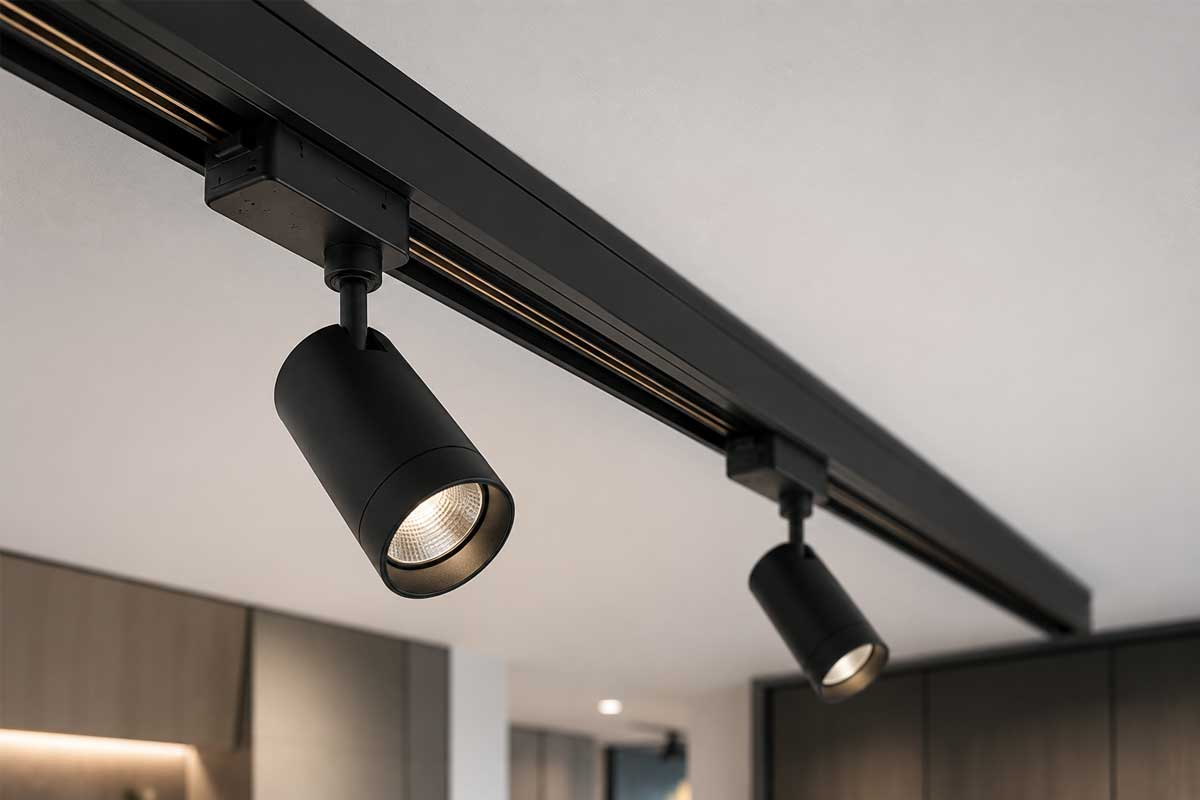

3f track systems: A Complete Guide to Selection, Wiring, and Use
