Vortex L LED recessed luminaire Ra>90
Made in England

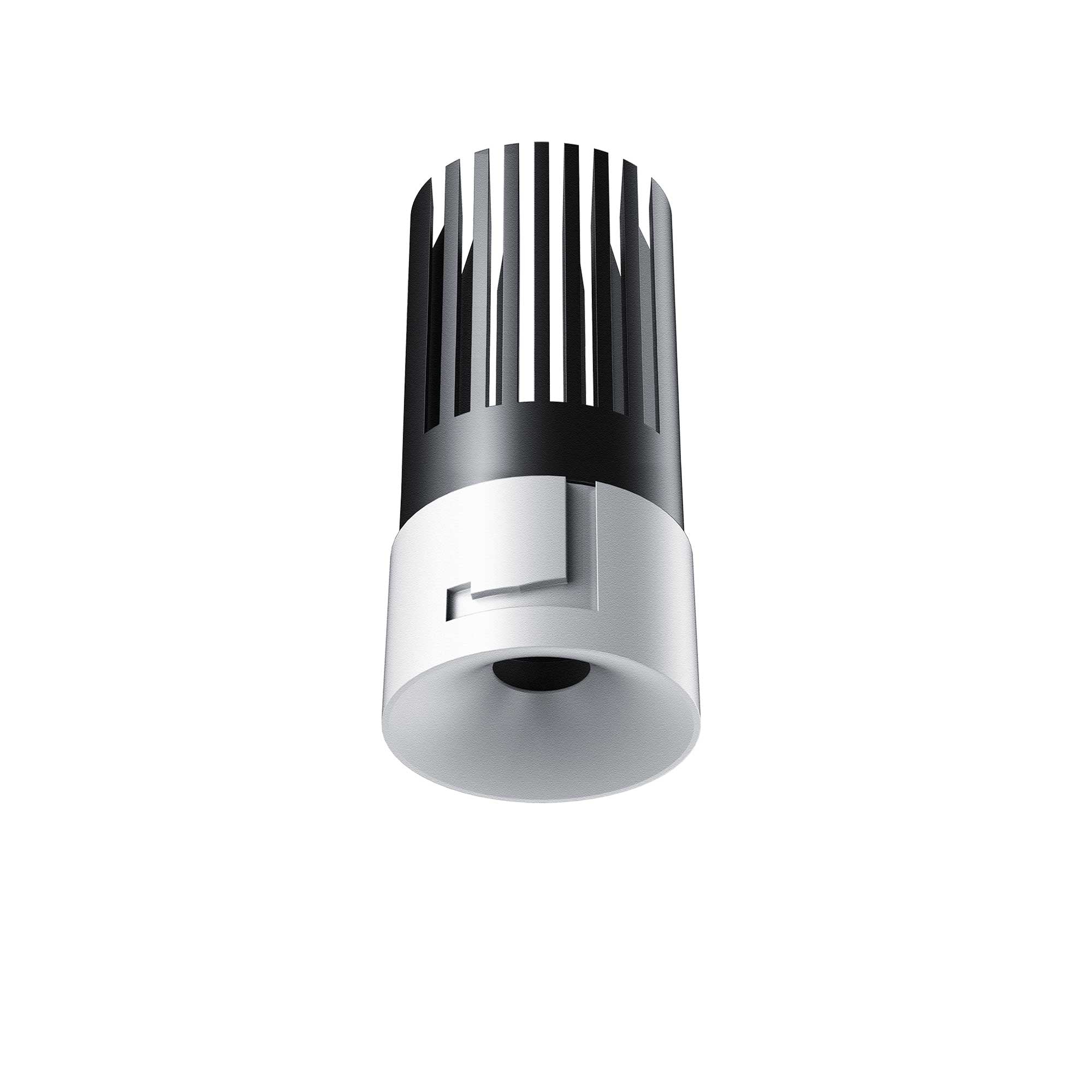

Vortex L in the framed version of the Vortex collection is designed for spaces with higher light requirements. The luminaire is equipped with a powerful 15W LED chip with a high colour rendering index CRI 90, which ensures high quality and natural light. Available chromaticities of 3000K or 4000K allow the lighting to be tailored to the specific needs of the project.
TRIAC or DALI dimming systems can be used for flexible control. In the TRIAC version, DIP Dimming with a chromaticity range of 2200K-4000K and a CRI of 98 can be added on request, while in the DALI version, Tunable White with 2700K-6000K chromaticity control can be activated on request. Versions with standard dimming can also be manufactured with a higher IP44 rating, suitable for areas with more demanding conditions.
Vortex L with bezel combines powerful light output, elegant framing and flexible control, while its design adds a stylish and clean visual element to the space that doesn't distract from the minimalist aesthetic of the ceiling.
Key features
Unable to load availability for personal collection
Personal collection available at ILUMIX light
Usually ready in 4 hours
Technical data
SKU:
ILU-VOR-RE-COSMOS-1803R+1801F-MBRO-30-ON/OFF
Color Temperature:
3000K
Performance:
15W
Luminous Flux:
837lm
Mounting Option:
Ceiling
Light Source Type:
LED
Degree of Protection:
IP20
Beam Angle:
36°
Lifetime (h):
50.000h
Material:
Aluminium
Color Index:
CRI>90

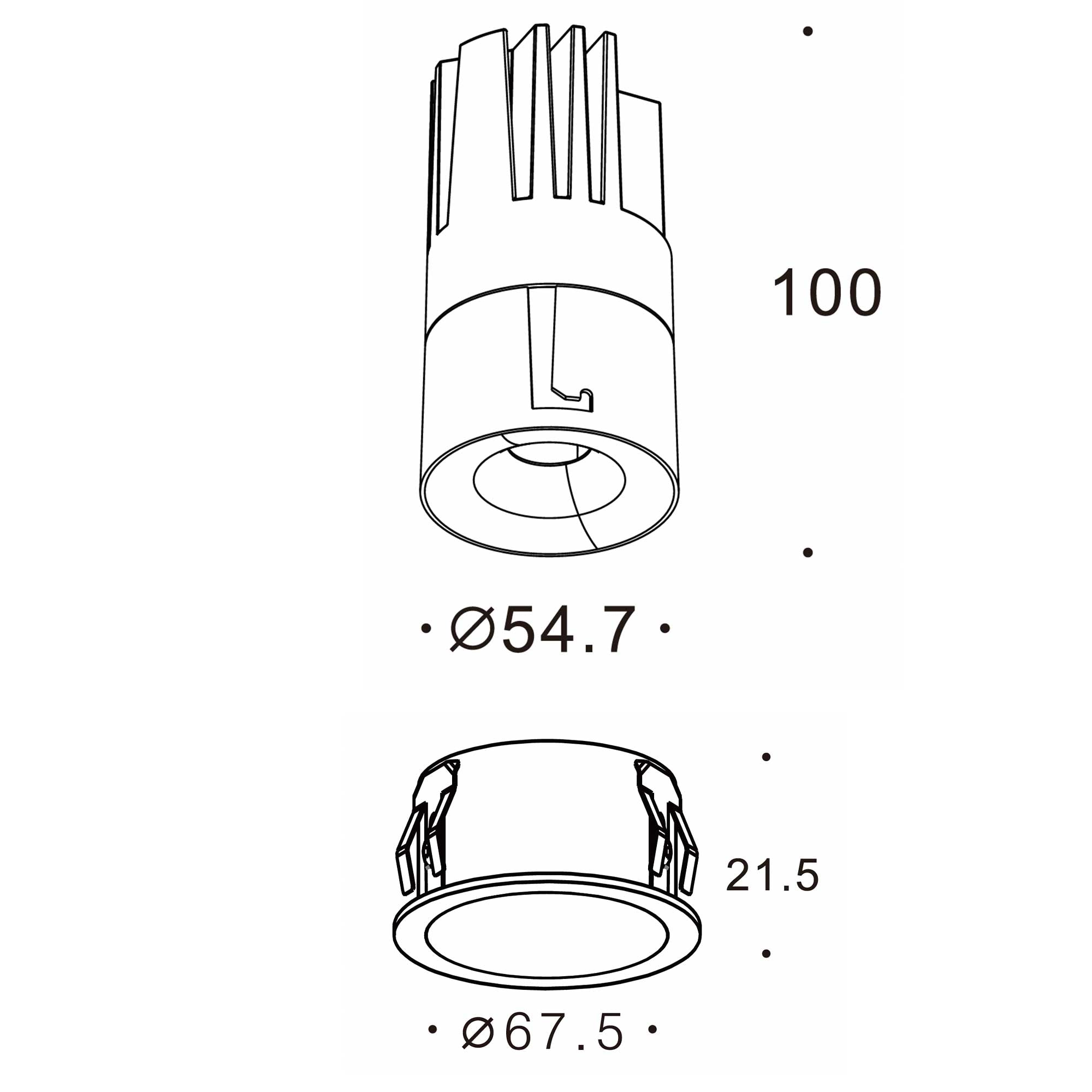

Dimension:
100Ø67.5mm
Voltage:
220-240V
Warranty:
2 years
Glare value:
UGR<16
Dimensions
Assembly instructions
Data sheet
Recommended combination:
Vortex L LED recessed luminaire Ra>90
