TM.ONTEC S20 M1 ST LED antipanické nouzové osvětlení IP65

Key features

TM Technologie

TM.ONTEC S20 M1 ST LED anti-panic emergency lighting IP65

€39,95(inc. VAT)

LED 1.95W 150lm IP65

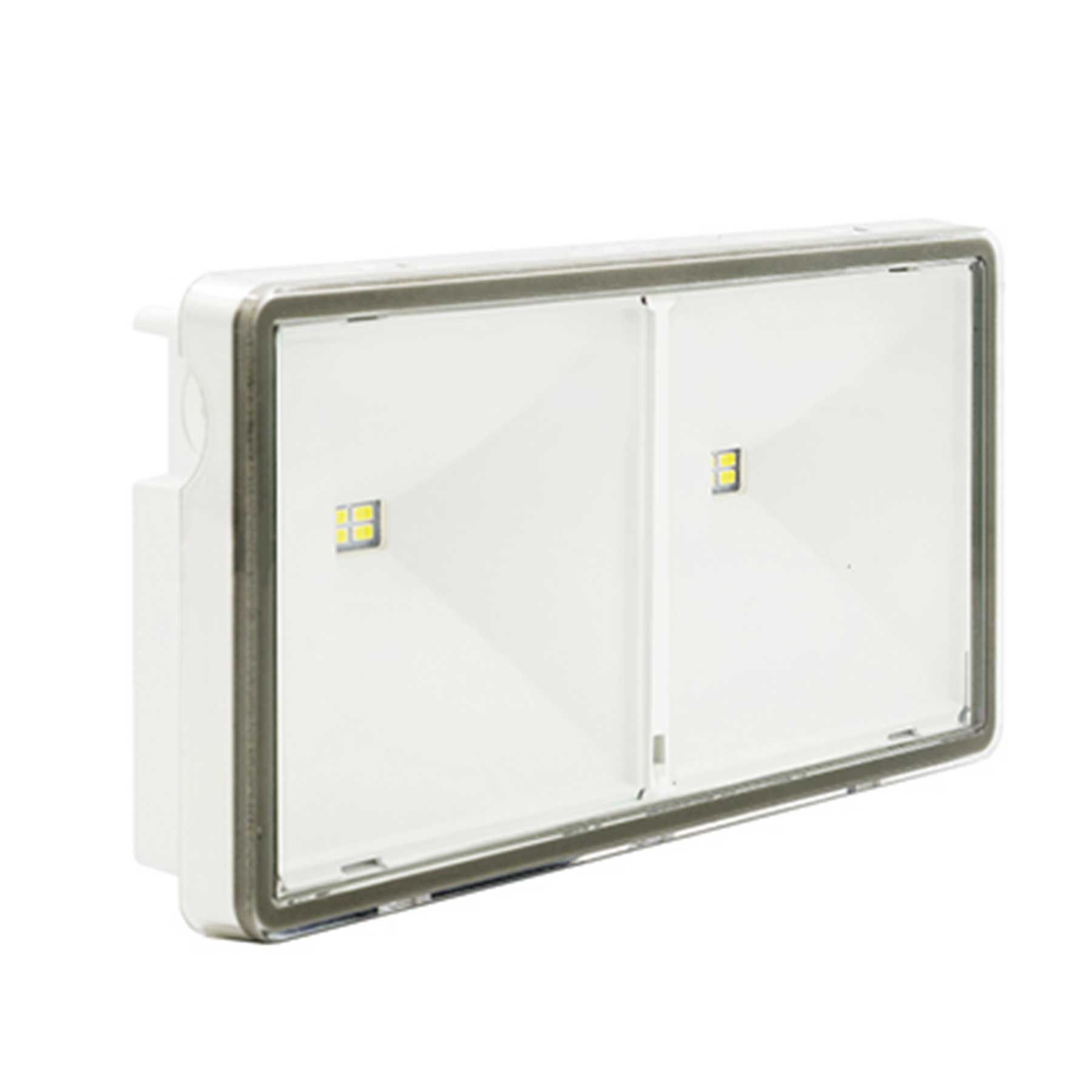

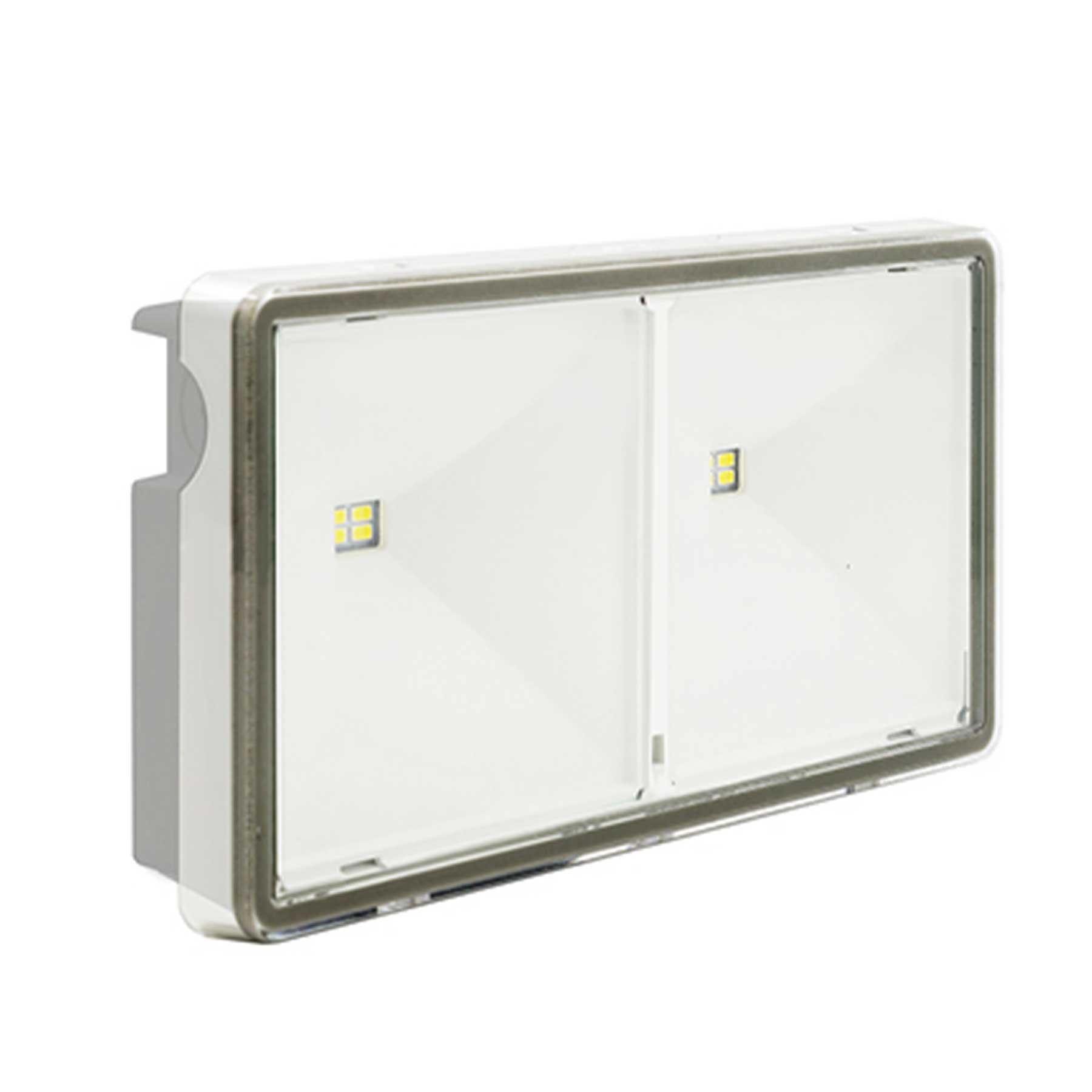

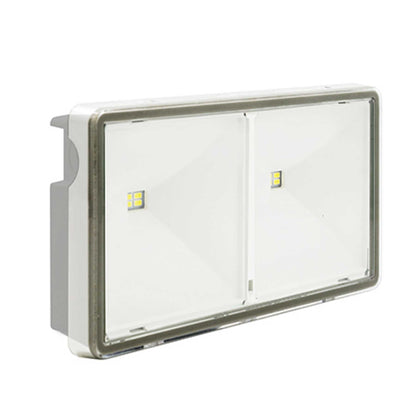

TM.ONTEC S20 M1 ST LED is a highly durable IP65 rated emergency LED light , ideal for exterior areas and industrial escape routes. It offers universal installation thanks to a wide range of accessories and two main functions: marking the direction of evacuation (visible from up to 20 metres with a flag or retractable pictogram) and illuminating open spaces. The pictogram is neatly mounted without visible mounting elements, and the light is available in two modes - NM (lights only during an outage) and M (lights permanently). In the event of a power failure, it provides uninterrupted illumination for a minimum of 1 hourthus guaranteeing enough time for a safe evacuation. Its robust construction makes it suitable for harsh environments such as industrial sites, car parks, warehouses or public buildings. The ST version is designed for applications with standard requirements and requires regular manual checks.

▾ Show more

Key features

Working mode: NM

NM
M

Product variants

In stock at the supplier (we will deliver by 1–6 weeks) In stock, ready to ship

Personal collection available at ILUMIX light

Usually ready in 4 hours

Technical data

SKU:

TM-S2.MUSTN160W

Performance:

1.95W

Luminous Flux:

150lm

Mounting Option:

Wall

Light Source Type:

LED

Degree of Protection:

IP65

Lifetime (h):

50.000h

Material:

PC

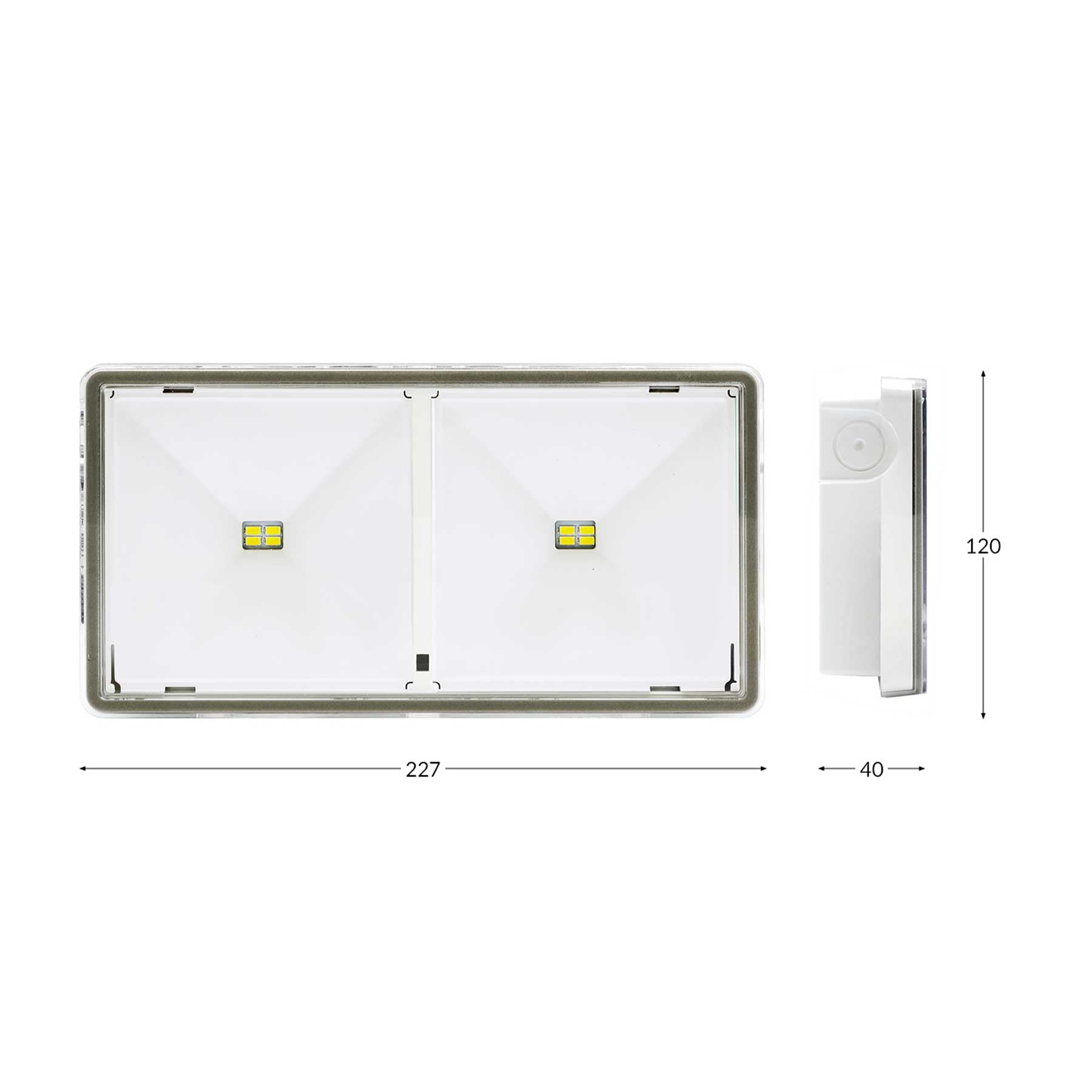

Dimension:

227x120x40mm

Voltage:

210-250V AC, 50/60Hz

Surface finish:

White

Electrical class:

II

Dimensions

Assembly instructions

Download instructions

Data sheet

Download data sheet

Recommended combination:

Long battery life

Although light is primarily mains powered, its built-in battery guarantees at least 60 minutes of light during a power failure. Interestingly, this function works reliably even in low temperatures (down to -20 °C), making it an ideal choice for exterior installations in both temperate and cold climates. Moreover, thanks to its dust and water resistance (IP65), light can easily withstand rain, snow and dusty environments.

Unique pull-out pictogram system

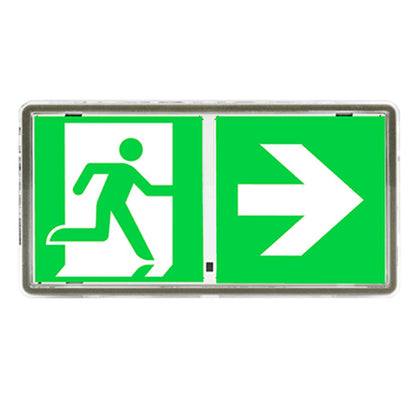

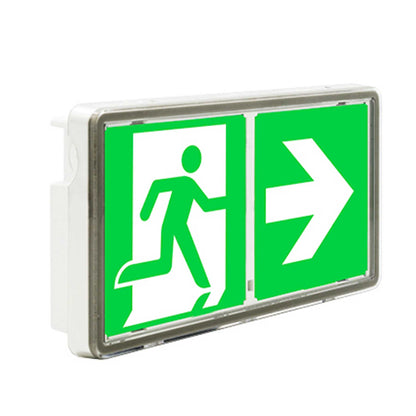

The Ontec S20 M1 LED S uses an innovative retractable pictogram that ensures perfect visibility of the evacuation direction even at longer distances. Interestingly, the pictogram can be easily replaced or adapted to the specific requirements of the facility, while the installation remains discreet and without visible screws or fasteners. This design element not only improves aesthetics but also increases resistance to vandalism.

The same collection of lighting fixtures

TM.ONTEC S M1 180 M LED antipanické nouzové osvětlení IP65

View product

TM Technologie

TM.ONTEC S M1 180 M LED anti-panic emergency lighting IP65

From €66,95(inc. VAT)

TM.ONTEC G E1E 180 NM AT antipanické nouzové osvětlení

View product

TM Technologie

TM.ONTEC G E1E 180 NM anti-panic emergency lighting

From €49,95(inc. VAT)

TM.ONTEC R M1 60 NM ST W LED antipanické nouzové osvětlení

TM Technologie

TM.ONTEC R M1 60 NM ST W LED anti-panic emergency lighting

€89,95(inc. VAT)

TM.ONTEC C M1 60 NM ST antipanické nouzové zápustné osvětlení

TM Technologie

TM.ONTEC C M1 60 NM ST anti-panic emergency recessed lighting

€89,95(inc. VAT)

TM Technologie

TM.ONTEC S M1 180 M LED anti-panic emergency lighting IP65

€81,95(inc. VAT)

TM Technologie

TM.ONTEC G E1E 301 M ST anti-panic emergency lighting

€66,95(inc. VAT)

Discount 20%

TM Technologie

TM.ONTEC S M5 105 M ST W LED anti-panic emergency lighting IP65

€59,95 €74,95(inc. VAT)

FAQs

You can find more tips and advice in our Lighting Academy.

What kind of environment is suitable for using the TM.ONTEC S20 M1 ST LED lighting?

The luminaire is designed for demanding environments such as industrial sites, parking lots, and warehouses. Thanks to its IP65 rating, it is resistant to rain, snow, and dust.

What are the operating modes of the TM.ONTEC S20 M1 ST LED lighting?

The light fixture offers NM mode (lights up during a power outage) and M mode (lights up continuously). In the event of a power outage, it provides light for at least 1 hour.

What IP rating is appropriate for a given space?

The appropriate IP rating depends on the environment in which light will be used. While IP20 is usually sufficient for standard living spaces, bathrooms, patios, and exterior areas require a higher level of protection against moisture and dust.

If you’d like to learn more about the different IP ratings, read our article IP Ratings Explained: How to Choose Lighting for the Bathroom and exterior Use.

What does "luminous flux" mean?

Luminous flux, measured in lumens (lm), indicates how much light light actually emits. When selecting a fixture, it is better to base your choice on the lumen rating rather than the power consumption in watts alone.

If you want to learn more about luminous flux and choosing the right wattage, read our What are lumens, and how many do we need for each room?

What does IP rating mean?

The IP rating indicates lighting lighting resistance to dust and water. The higher the IP rating, the better protected light is. Bathrooms, patios, and outdoor areas typically require a higher level of protection than standard living spaces.

You can find an overview of the different IP ratings and their uses in our article What Does IP Rating Mean, and How to Choose light Right light
