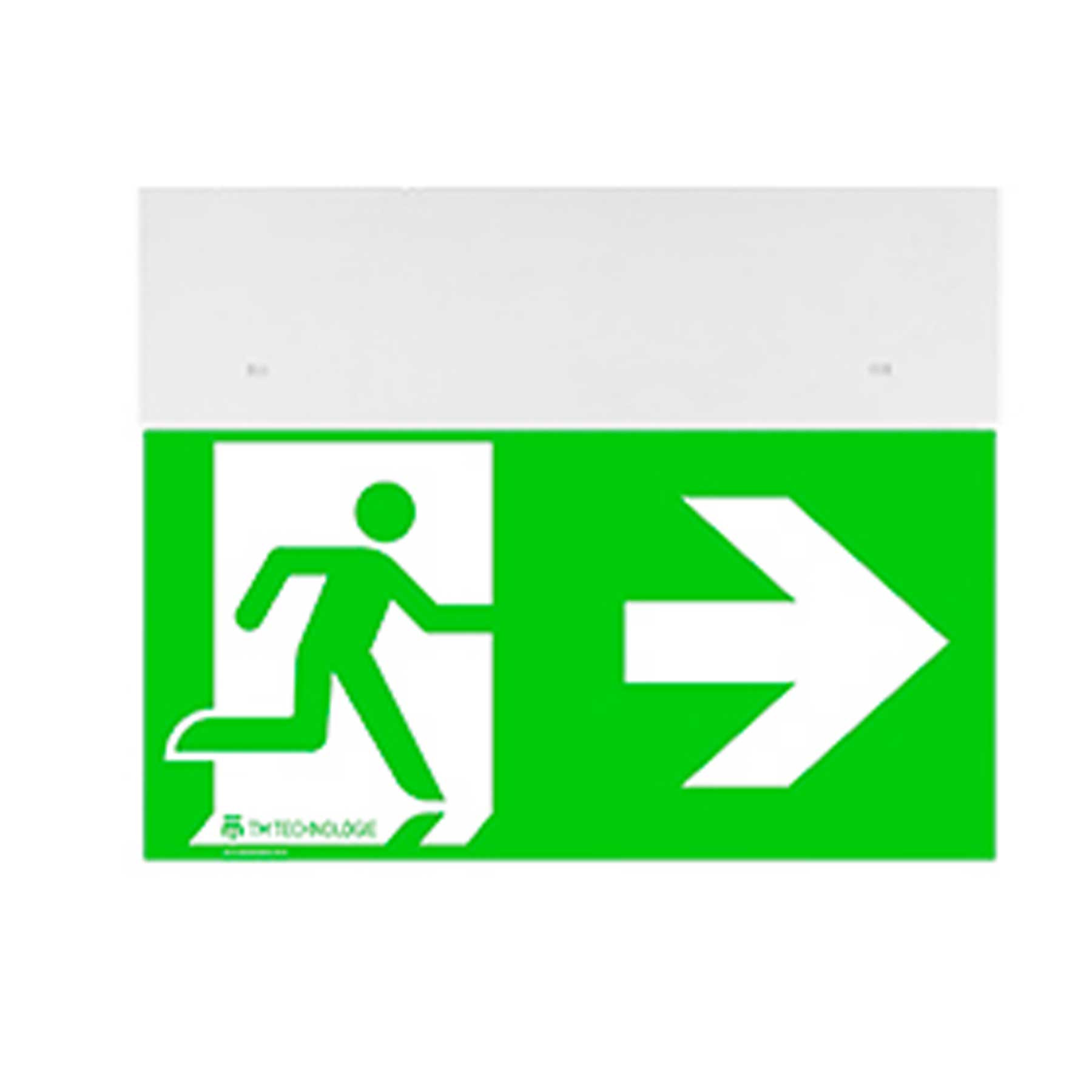

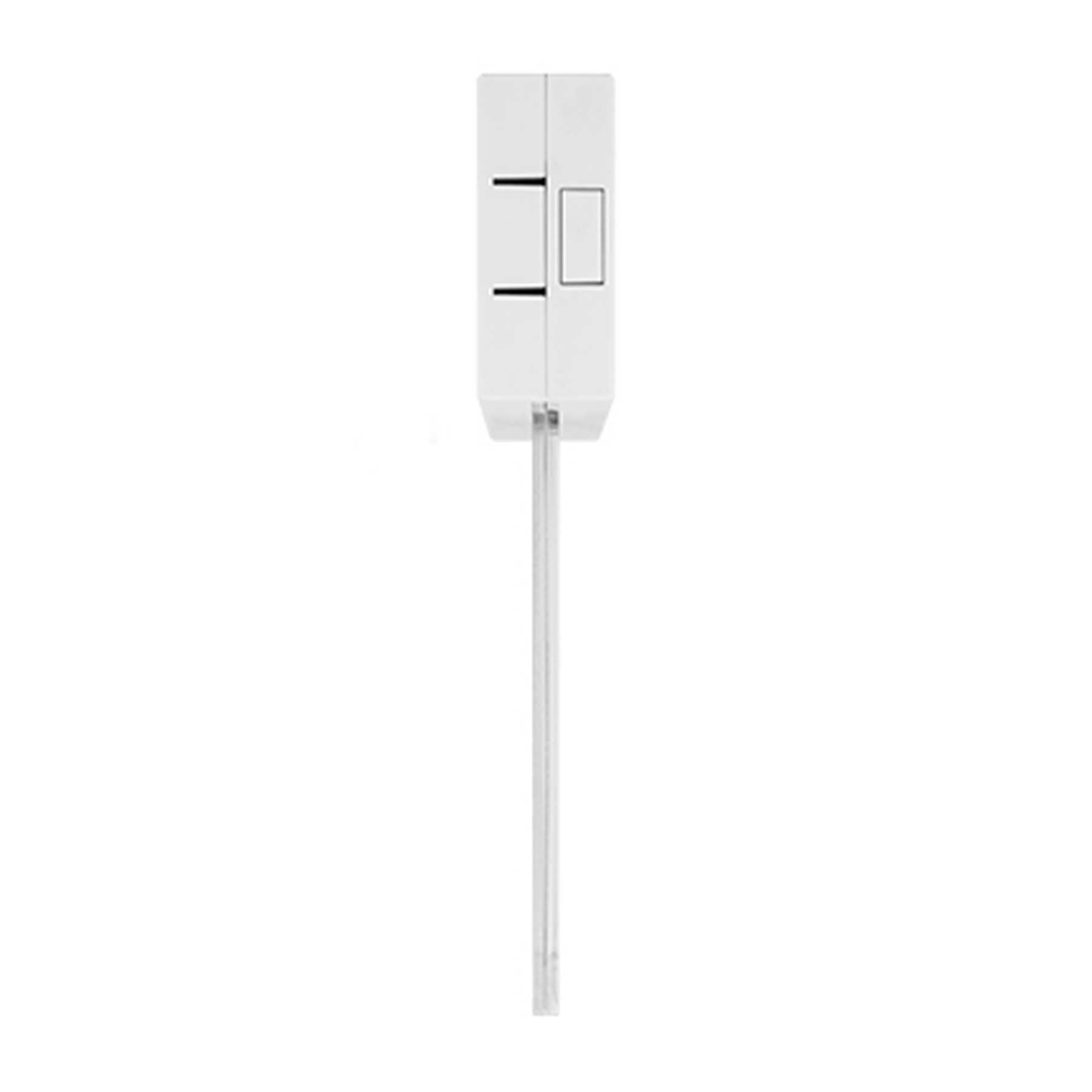

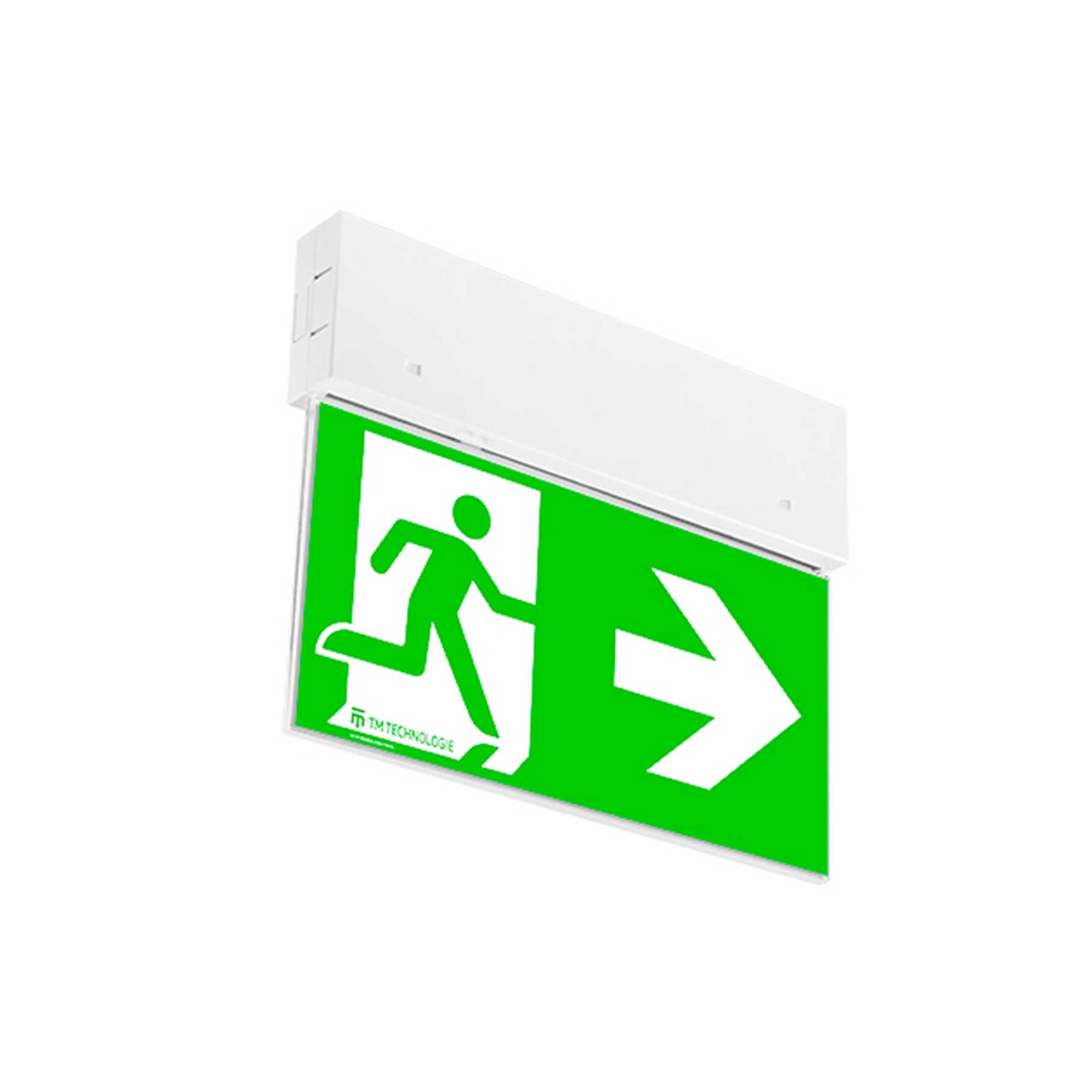

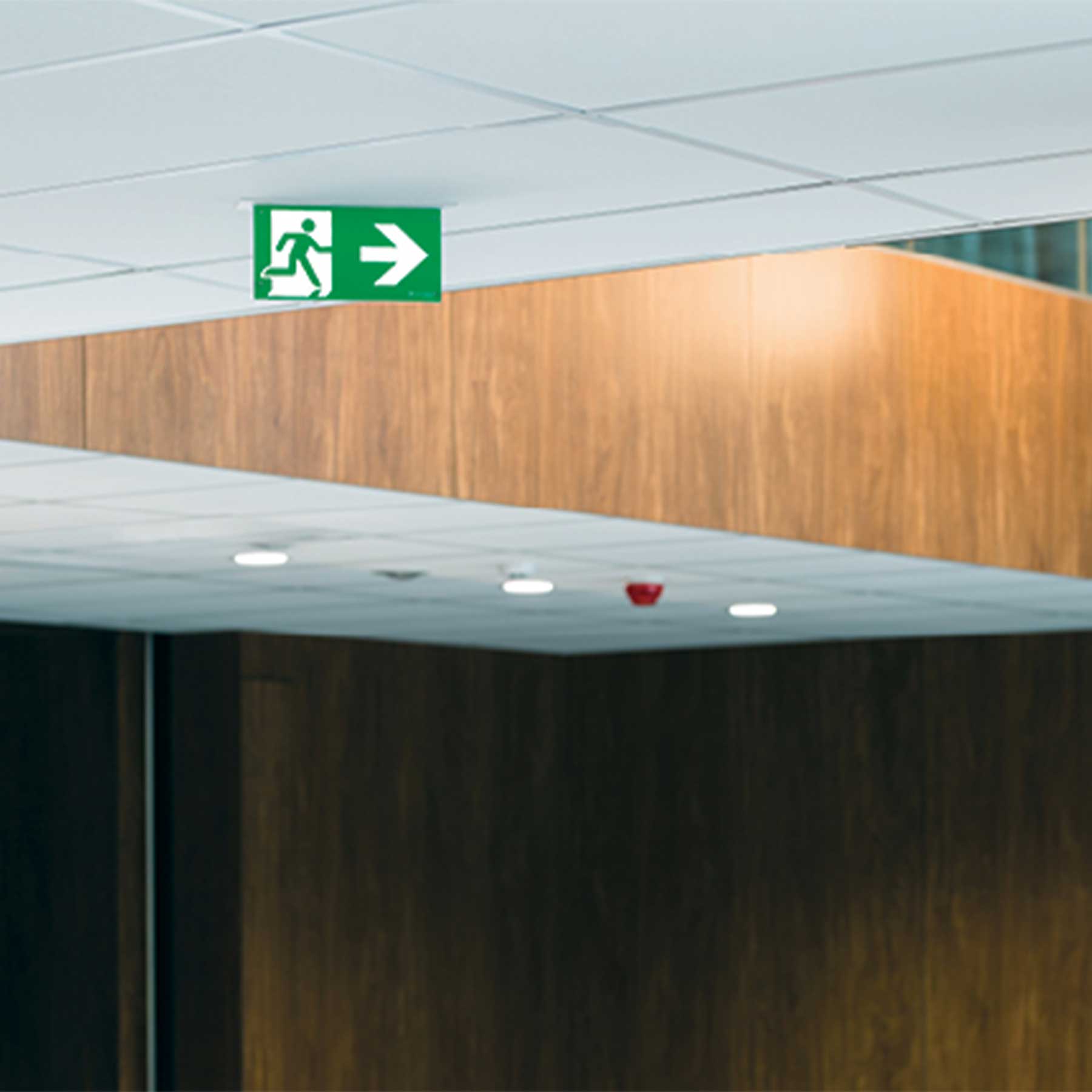

TM.ONTEC G E1E 180 NM anti-panic emergency lighting

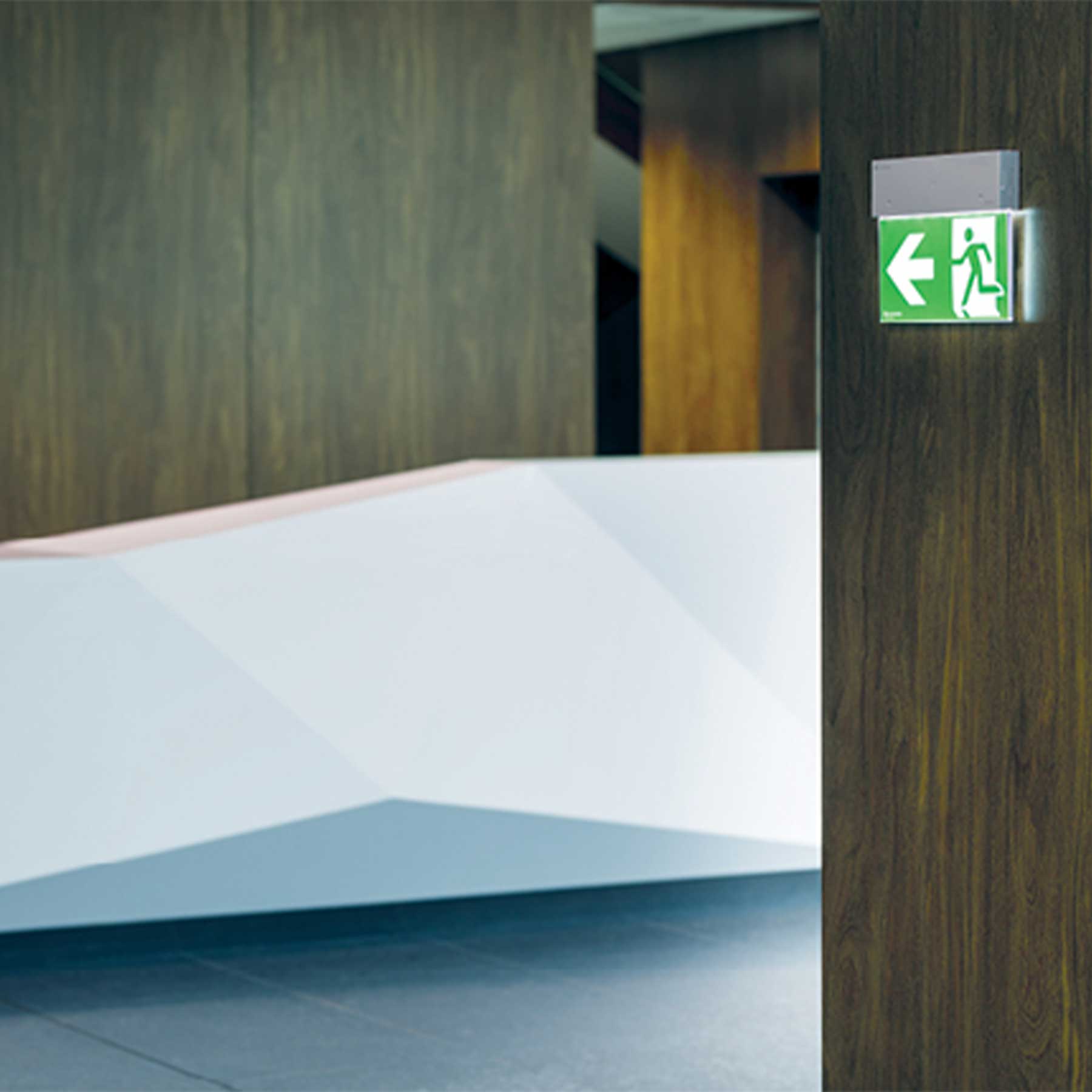

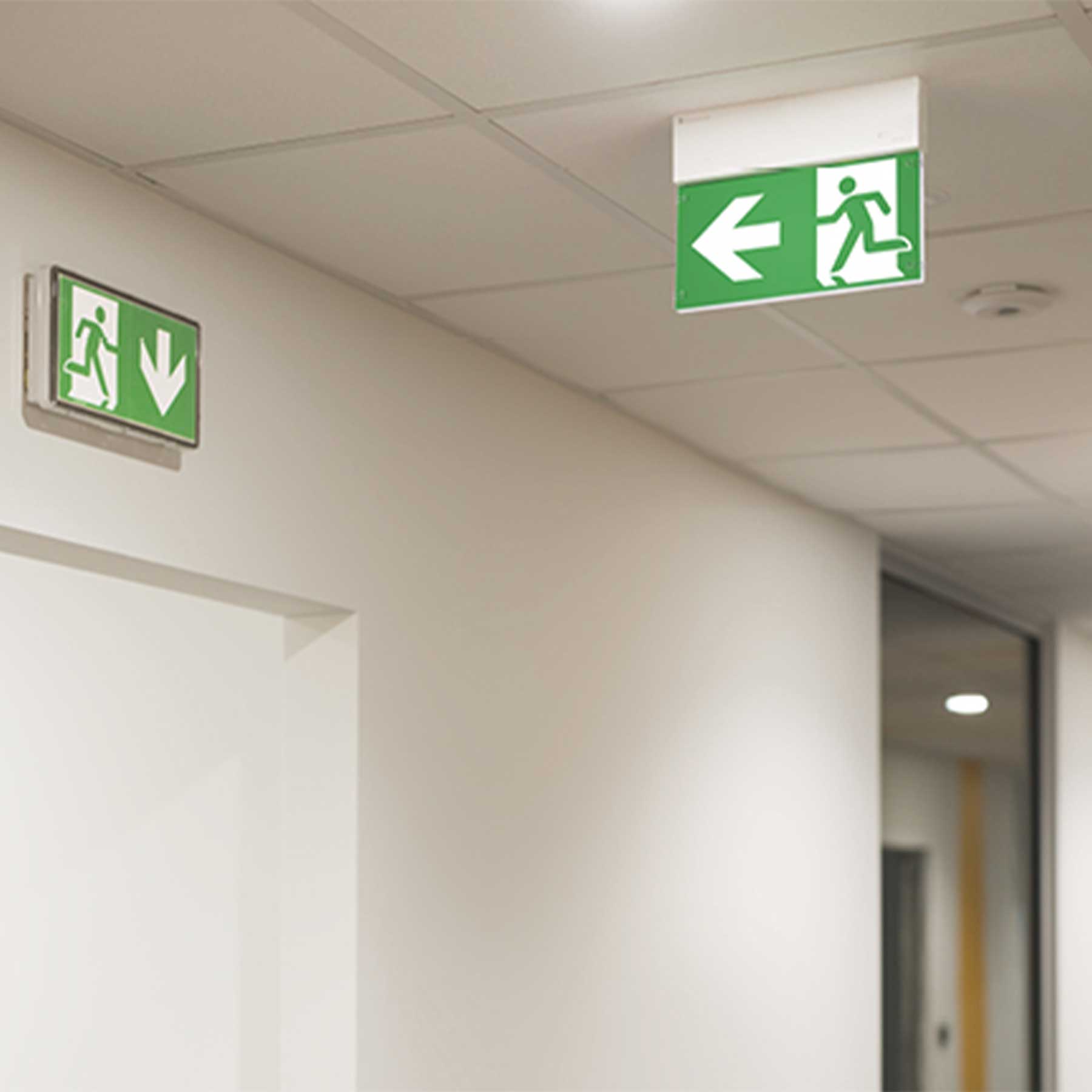

The TM.ONTEC G E1E 180 NM is an evacuation light with a high luminous intensity of up to 500 cd/m² thanks to a special gradient on the Plexiglas, which ensures excellent visibility of pictograms at a distance of up to 25 metres. A set of pictograms is included in the package, which is quick and easy to assemble - no visible fixings or adhesive required. The luminaire can be installed on one or both sides, on the wall (parallel or perpendicular) or on the ceiling (recessed, suspended or plastered), providing high flexibility in the design of escape routes. It can stay lit for up to 3 hours during a power failure and operates in NM mode, i.e. it only lights up during a power failure. It is designed for indoor temperatures of 10-35°C and meets IP20 and IK05 mechanical resistance. The luminaire is available in two versions of control - AT (autonomous test), which periodically automatically checks the functionality of lighting and battery without the need for intervention, and ST (standard test), where the check is carried out manually using a test button. With these options, the customer can choose a solution according to the project requirements and the way the building is managed.

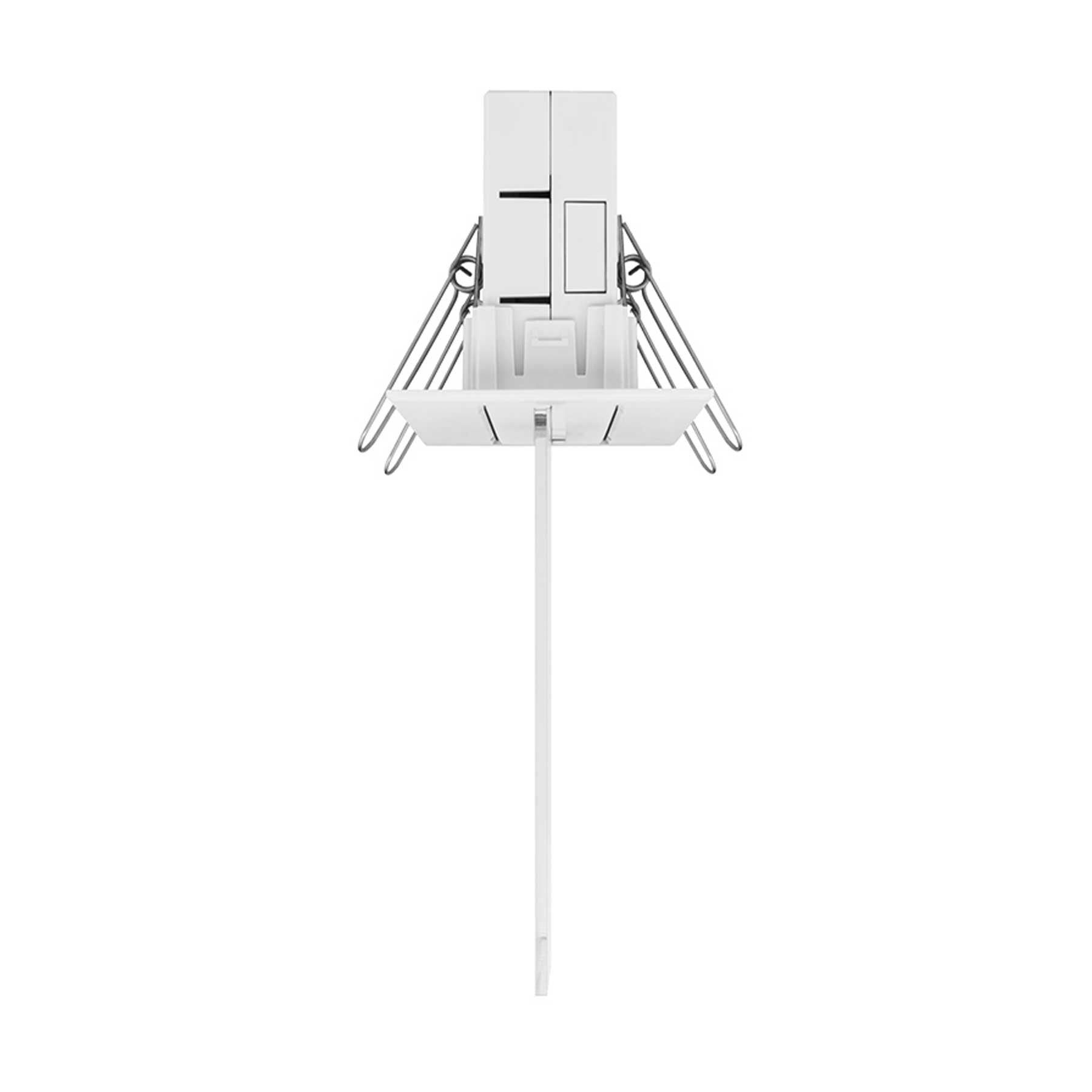

For recessed or overhead mounting, the appropriate installation kits must be purchased (not included in the basic package).
Key features
Unable to load availability for personal collection
Personal collection available at ILUMIX light
Usually ready in 4 hours
Technical data
SKU:
TM-OG.EESTN800W
Performance:
1.2W
Mounting Option:
Ceiling","Wall
Light Source Type:
LED
Degree of Protection:
IP20
Lifetime (h):
50.000h
Material:
PC
Dimension:
194x29x250mm
Voltage:
210-250V AC, 50/60Hz
Surface finish:
White
Electrical class:
II

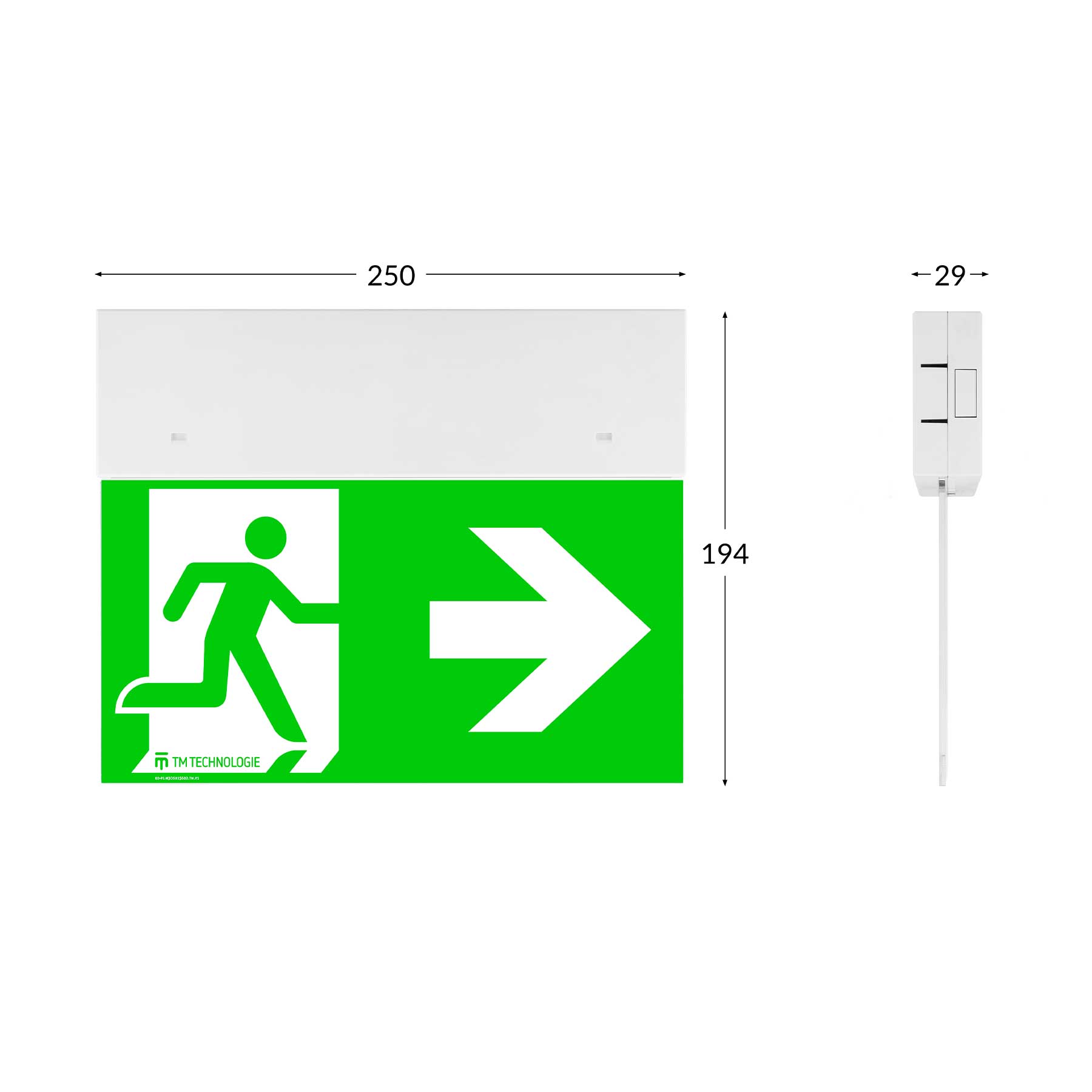

Dimensions
Assembly instructions
Data sheet
Recommended combination:
TM.ONTEC G E1E 180 NM anti-panic emergency lighting
If you have any questions, you can contact us at any time. We will get back to you as soon as possible.
-
Information on transport
Shipments are sent via GLS courier service. Larger and bulkier shipments are delivered by Toptrans. You will be notified of the shipment by e-mail with the tracking number.
-
Stock availability
In most cases, we ship goods in stock the same day. For products "in stock at the supplier" you can always find the date of dispatch for each product.
-
Write to us
If you have any questions, please do not hesitate to contact us. We will be happy to advise you at the following e-mail address info@360design.cz. We are here for you!
-
Customer support
Our customer support is available Mon-Fri: 09:00 - 16:00 on +420 773 33 55 35. We will be happy to help you.
Maximum visibility
Universal mounting without visible joints
The same collection of lighting fixtures

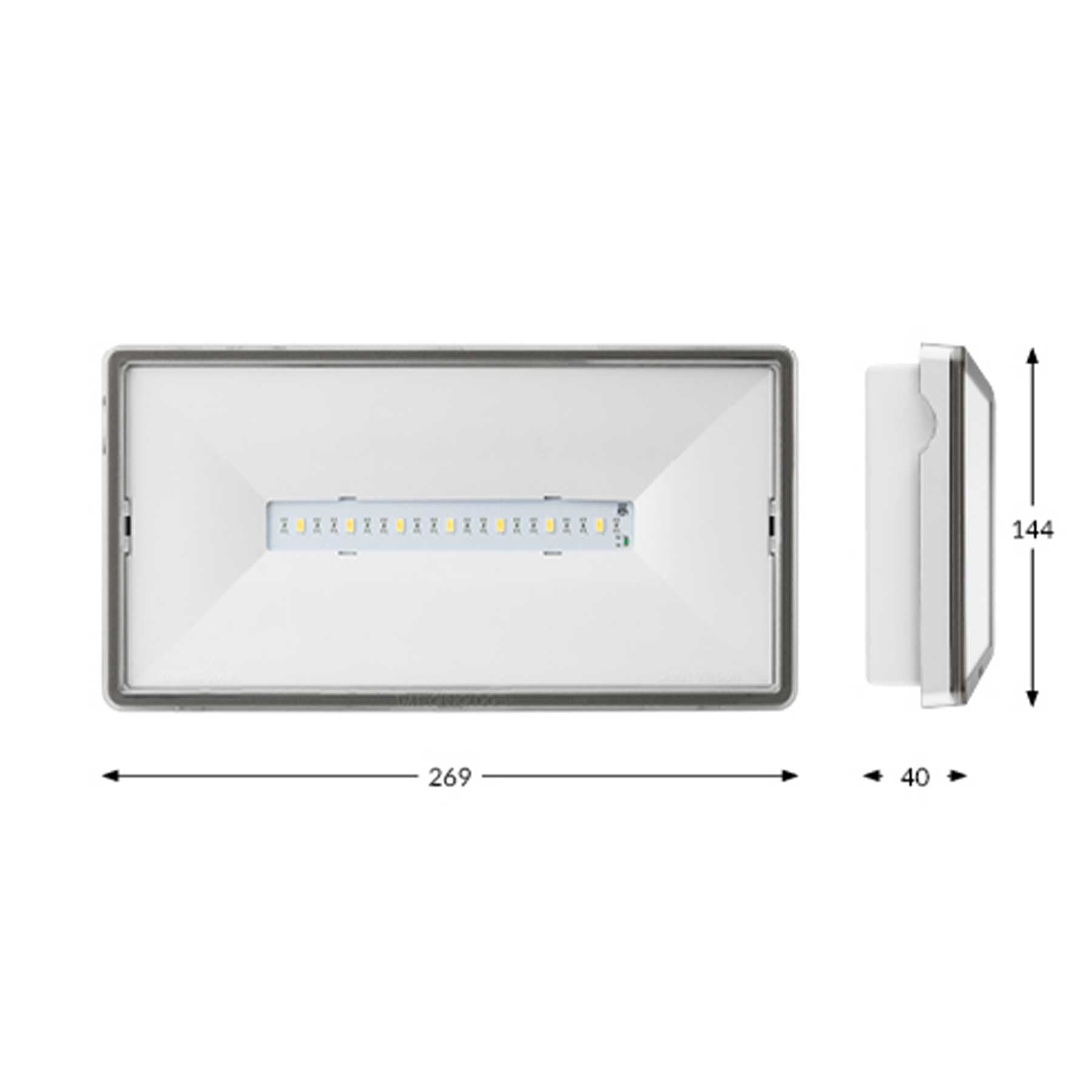

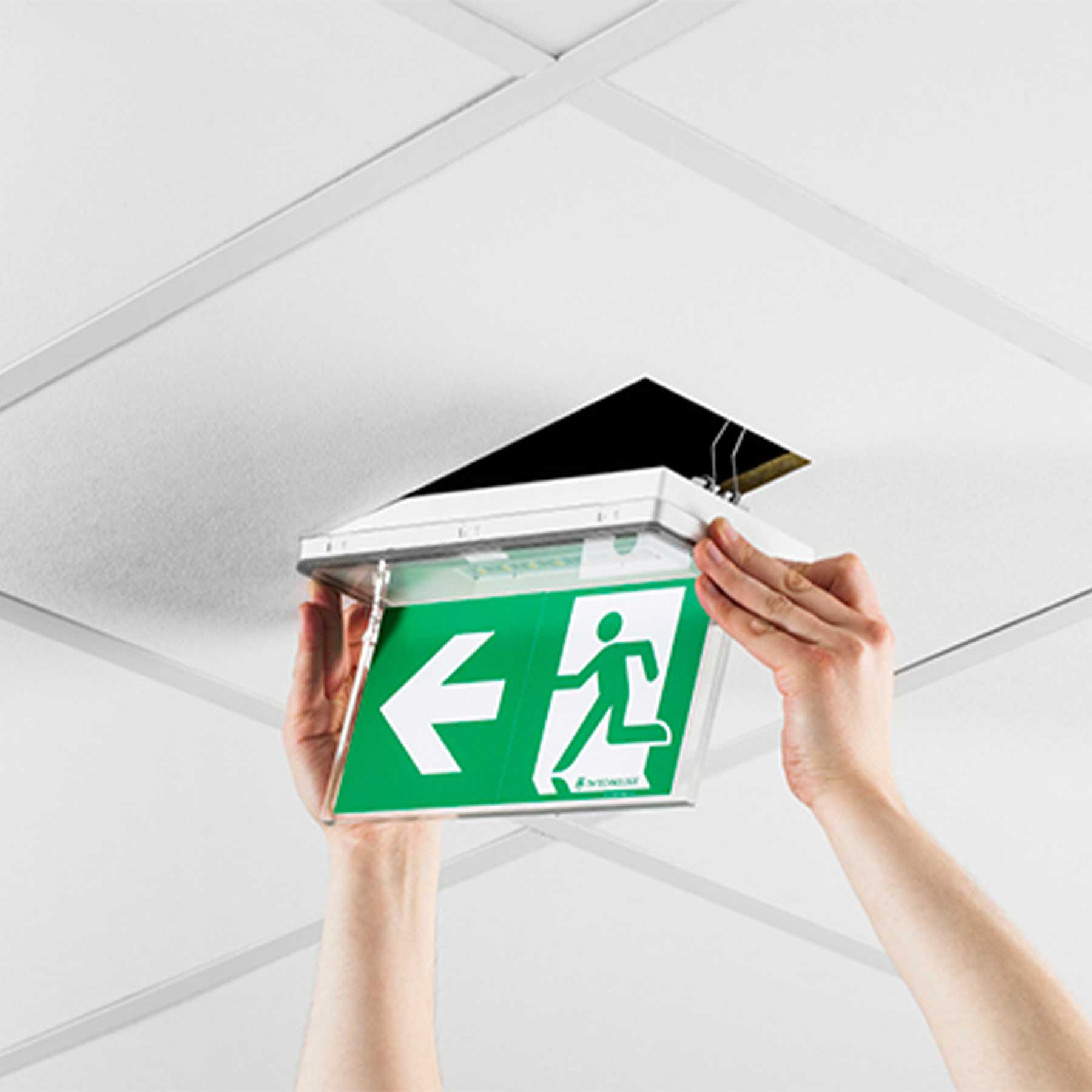

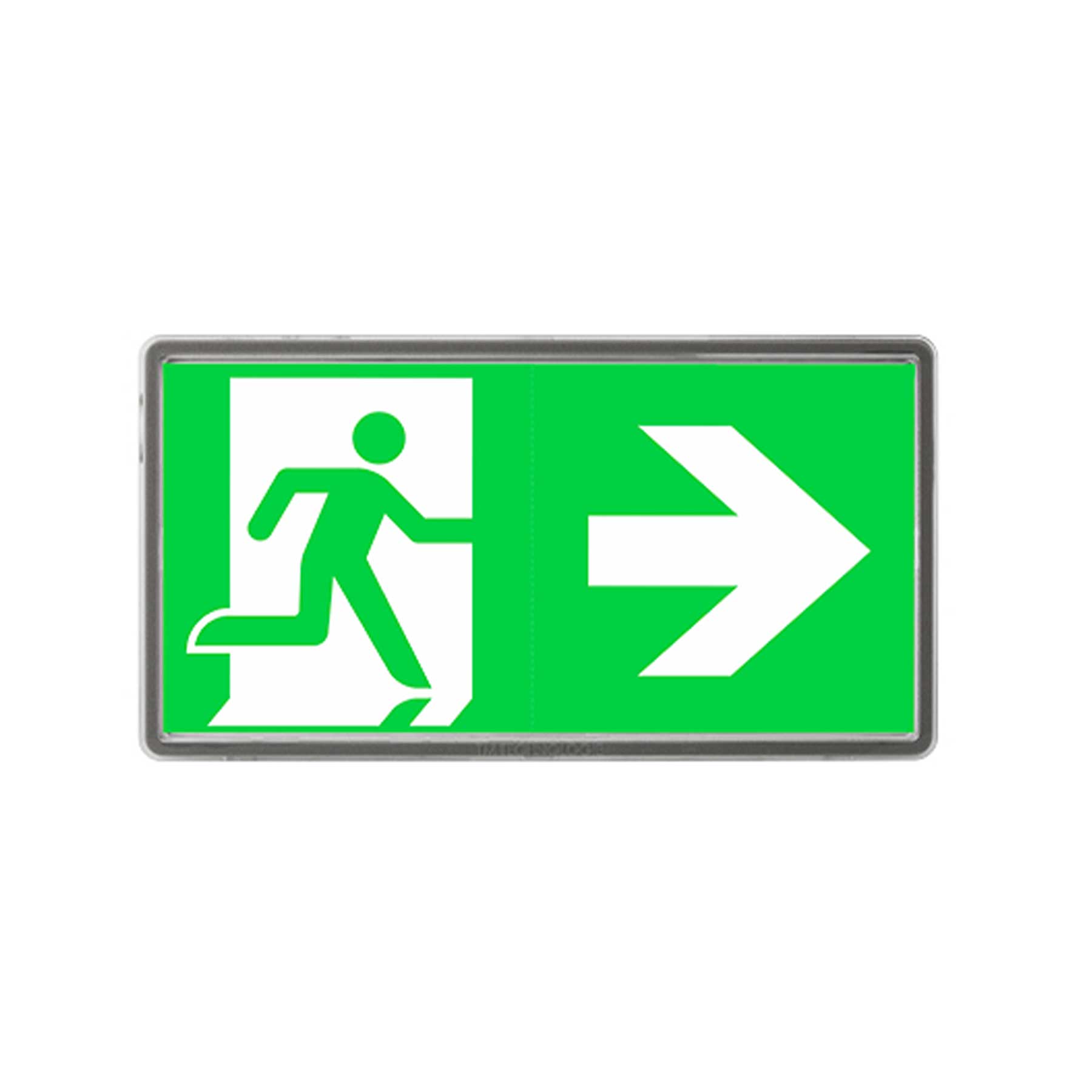

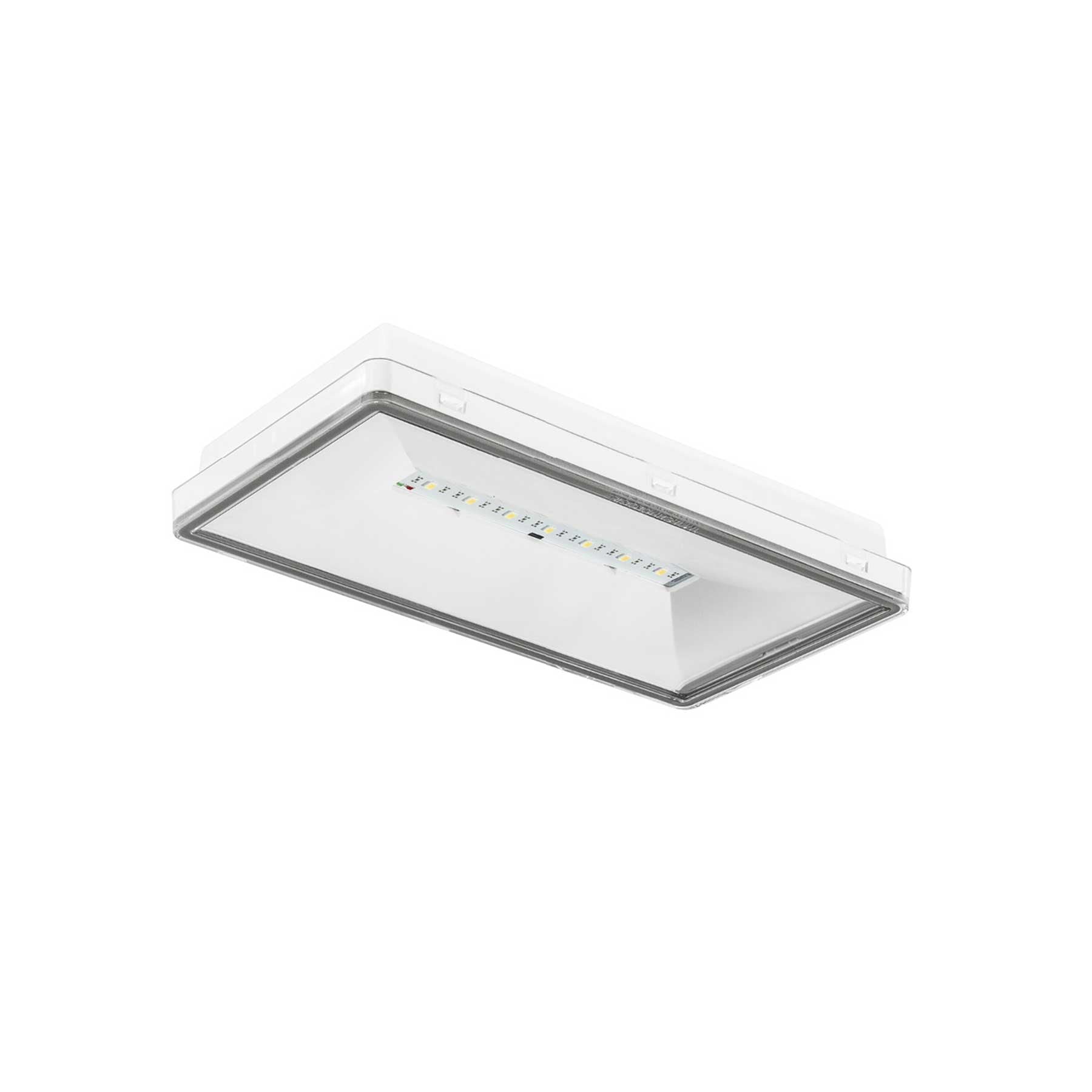

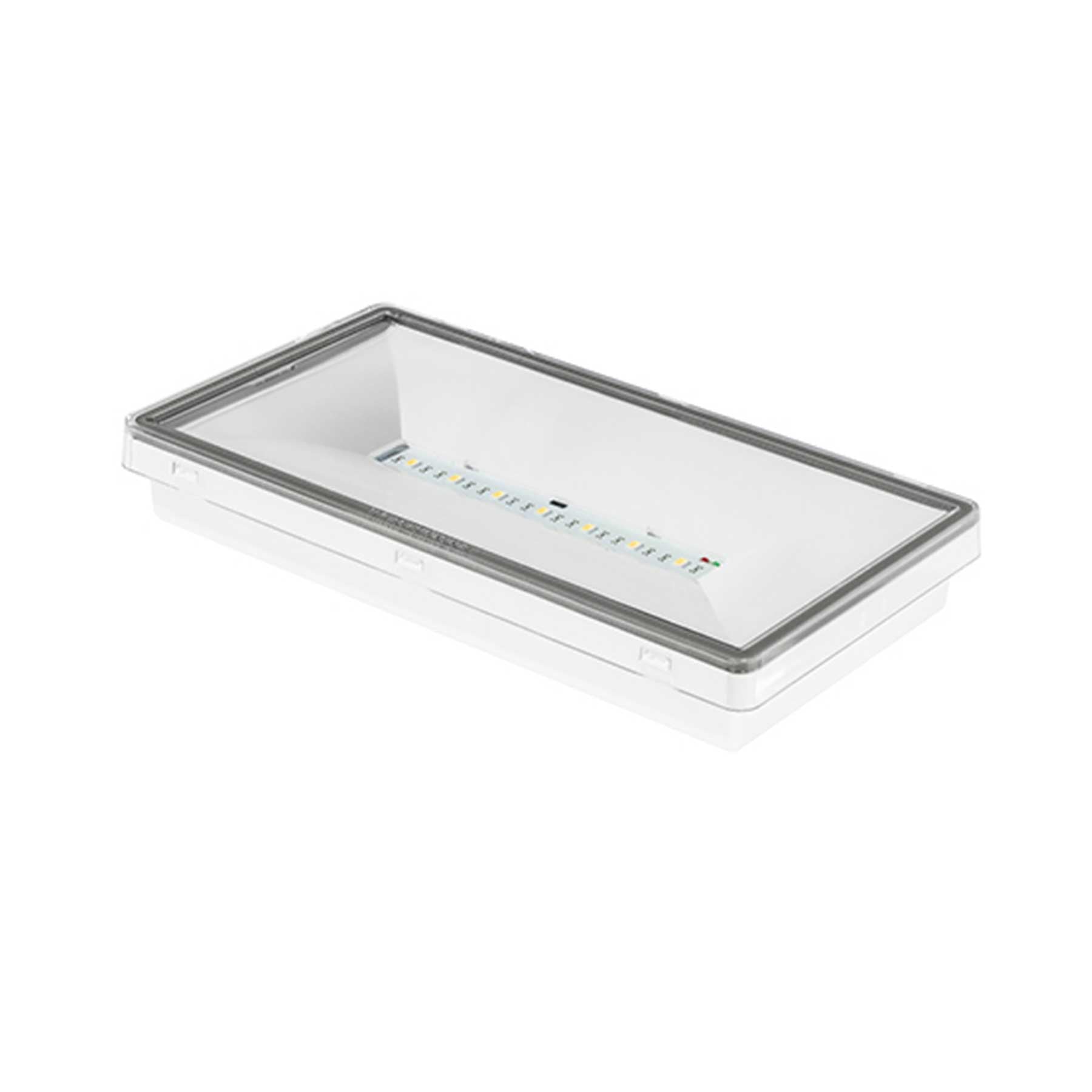

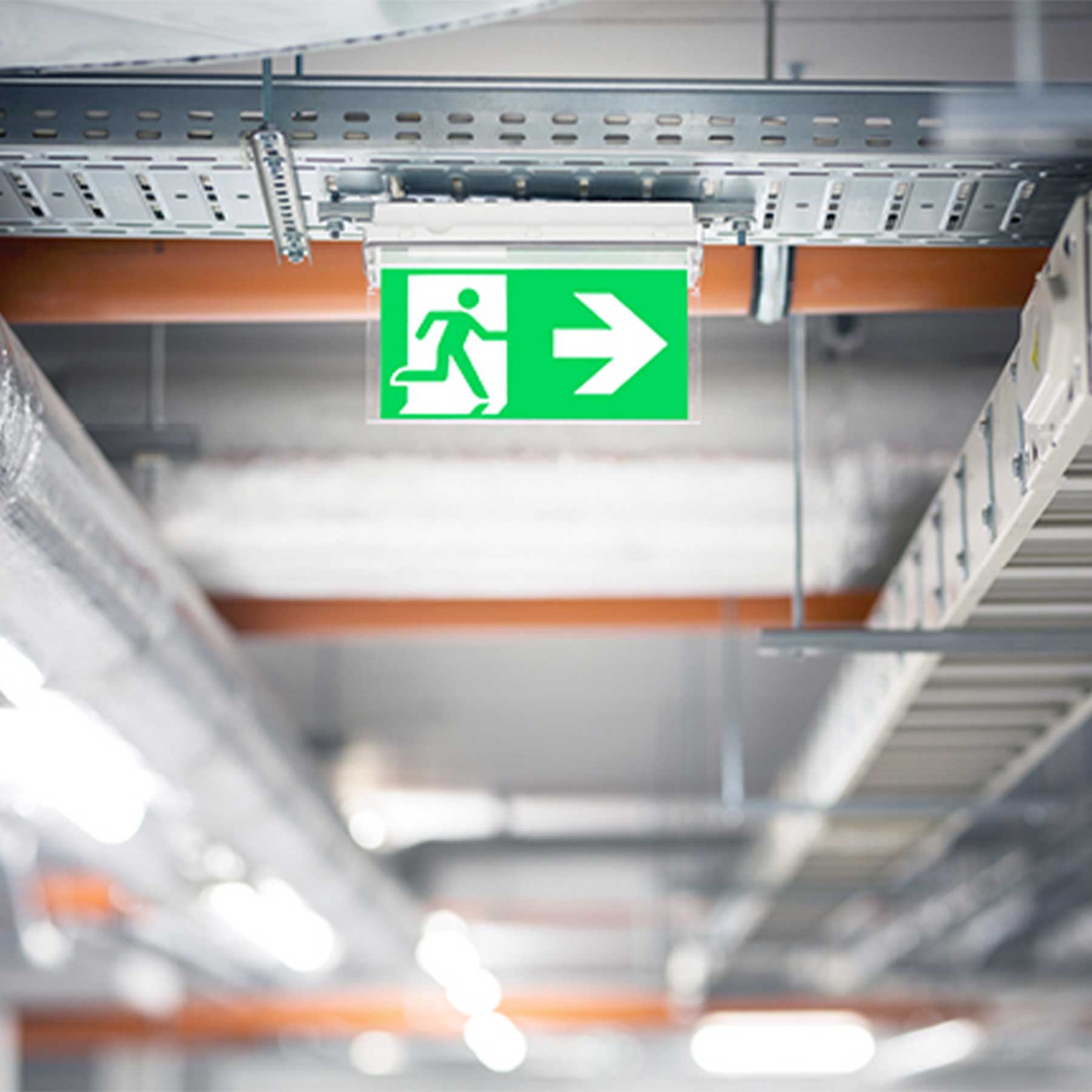

TM.ONTEC S M1 180 M LED anti-panic emergency lighting IP65

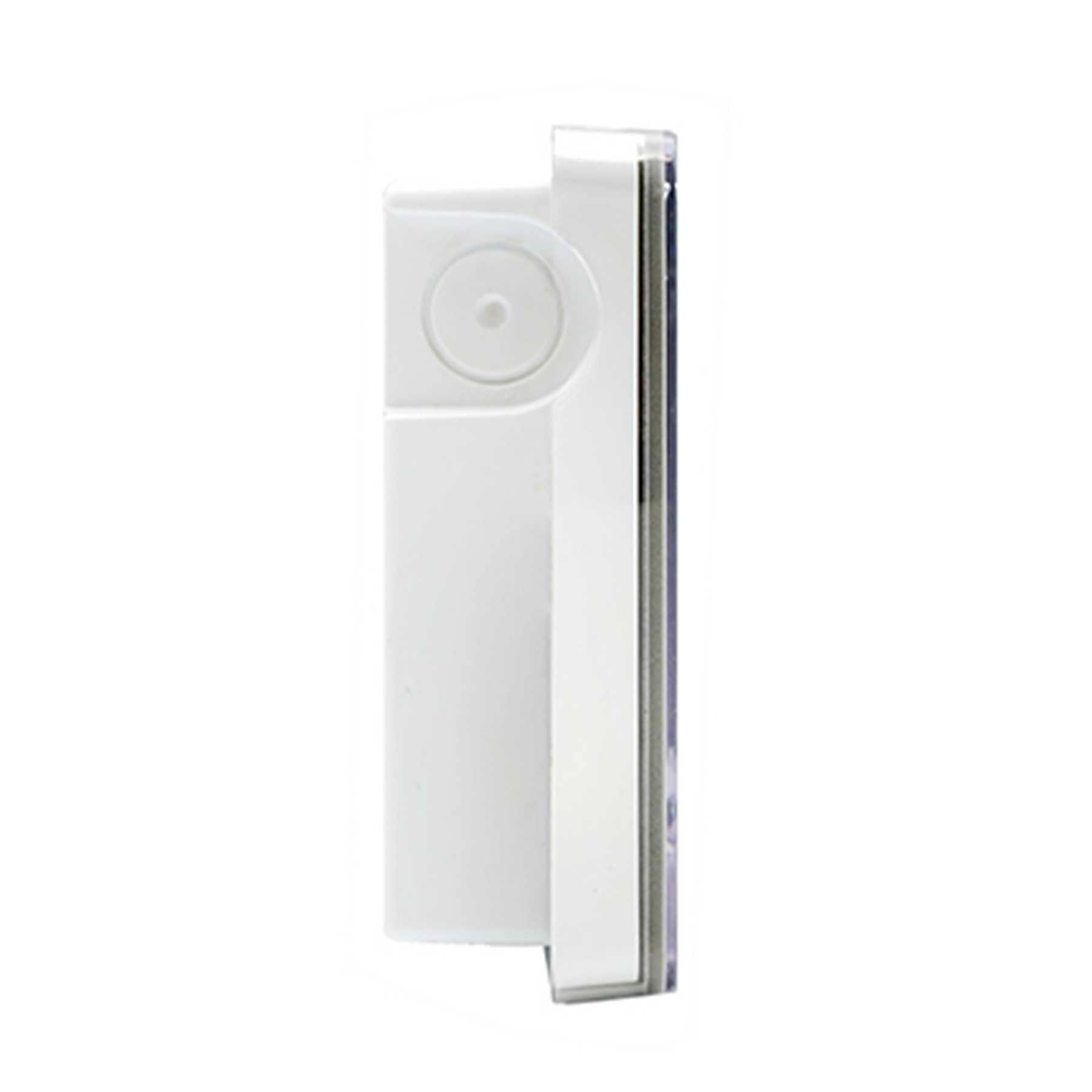

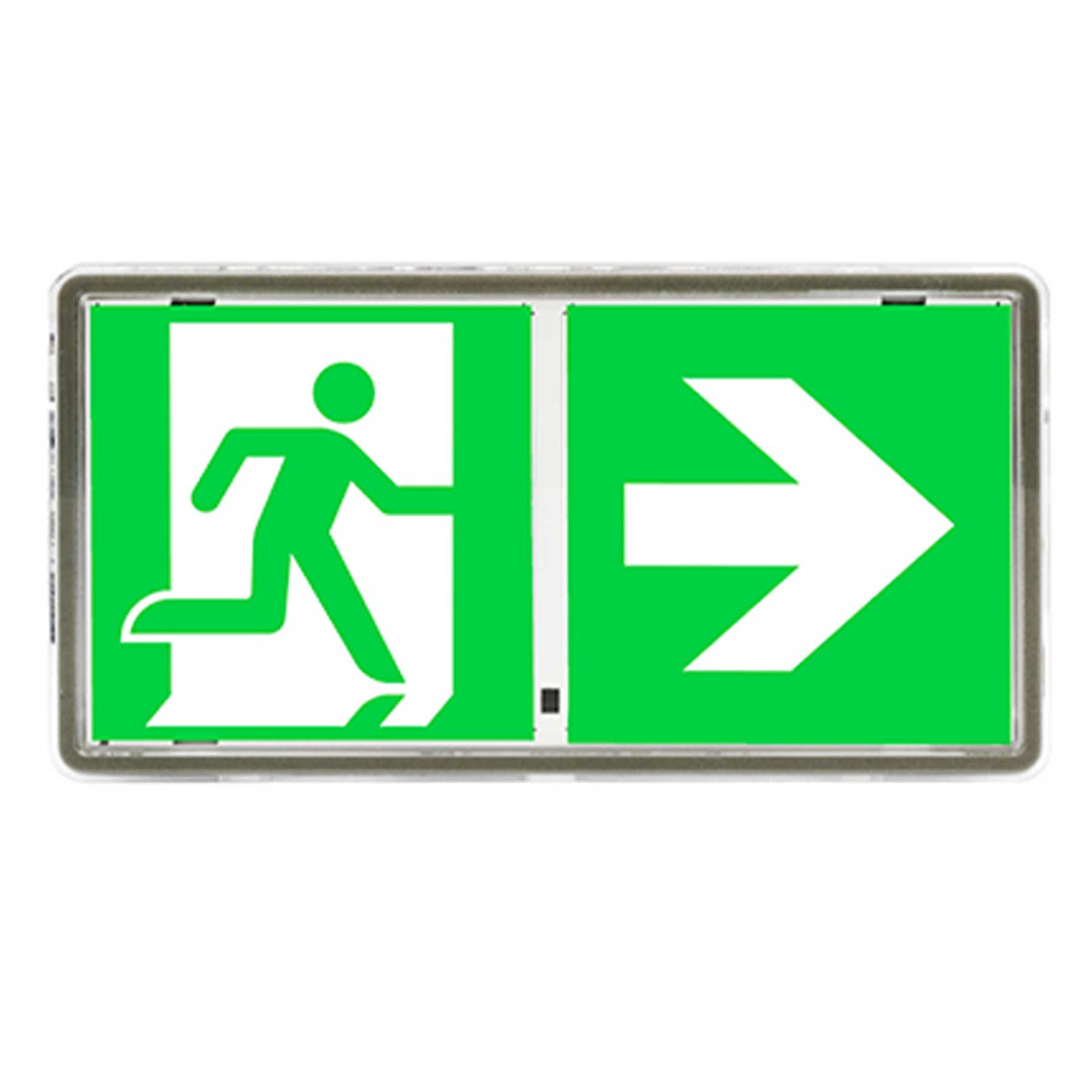

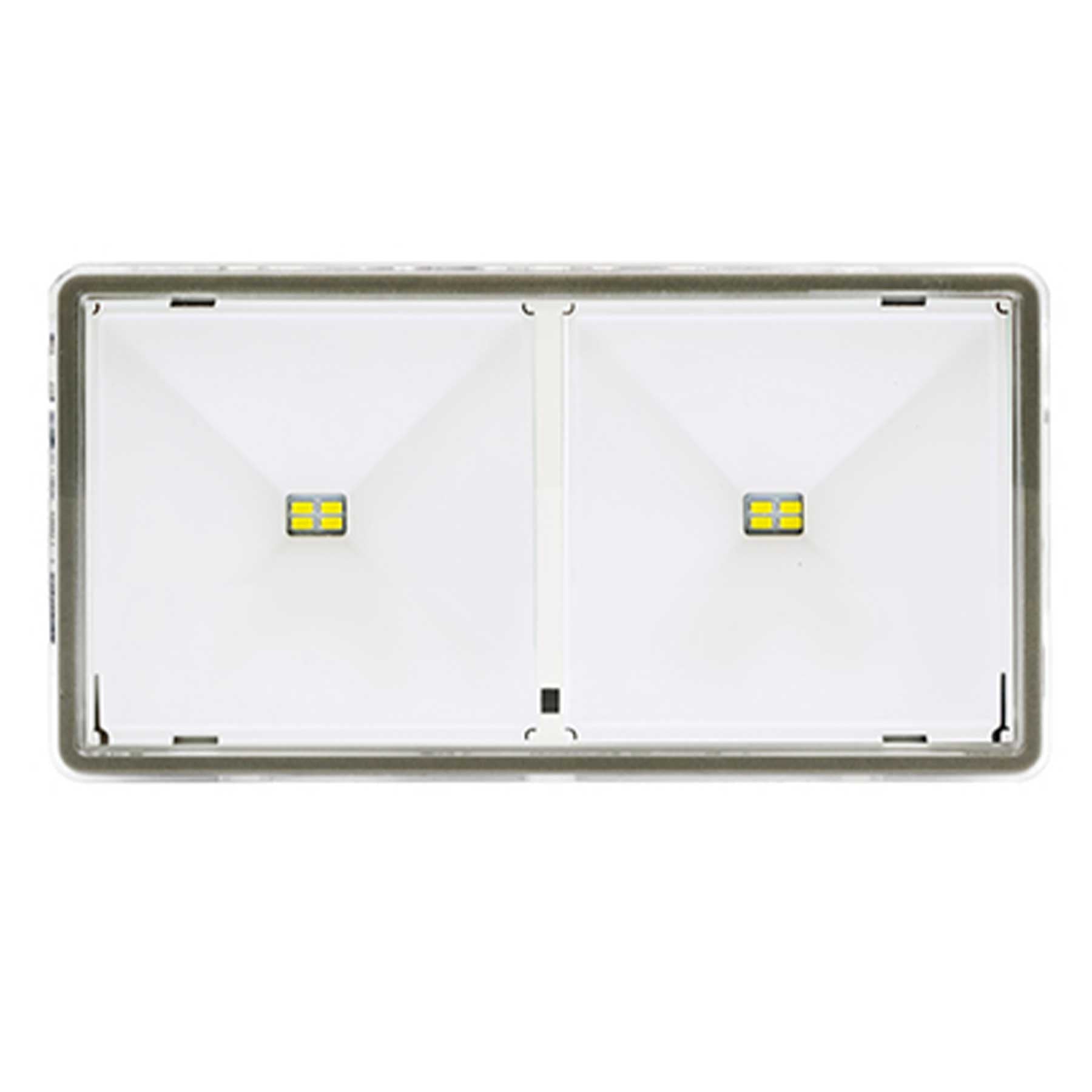

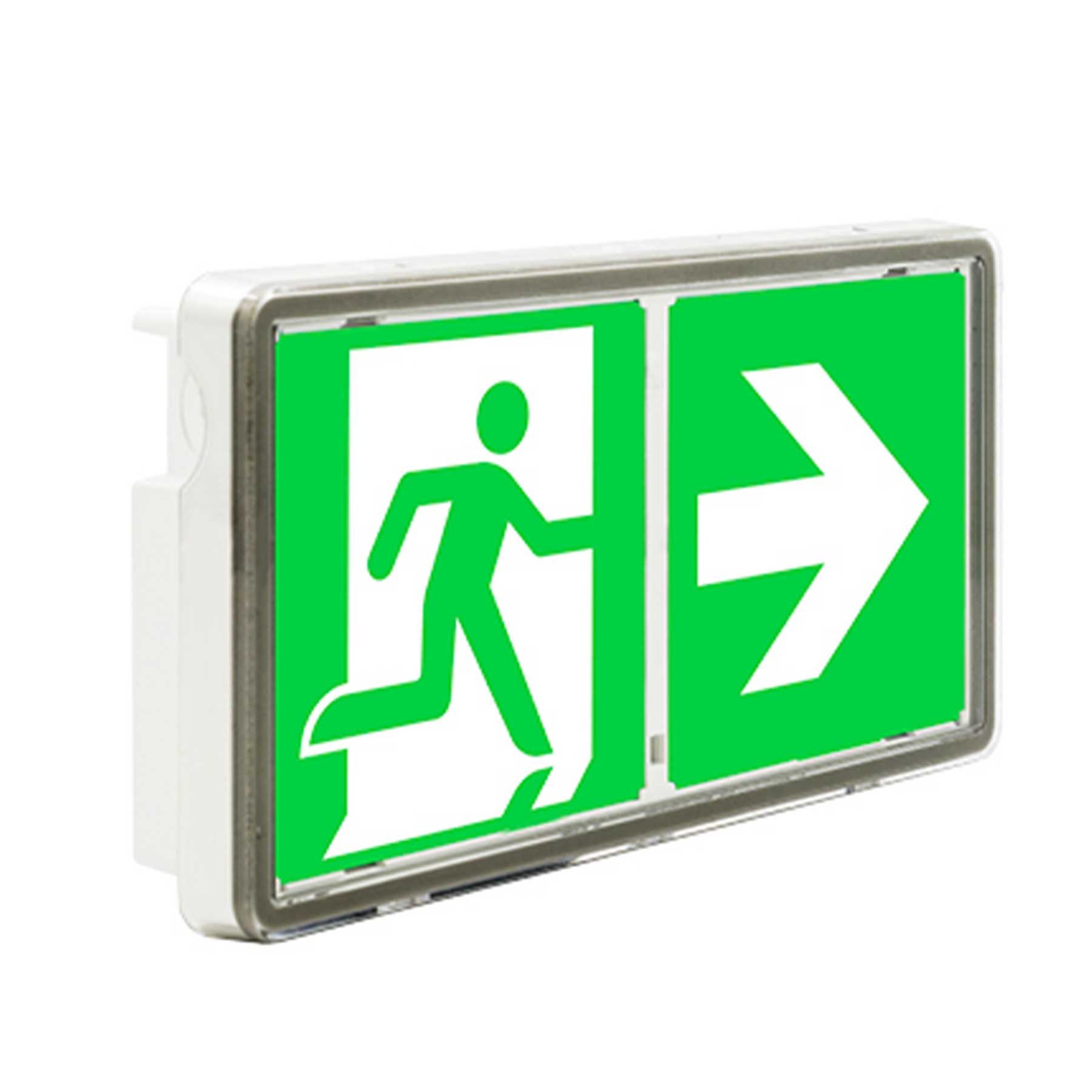

TM.ONTEC S20 M1 ST LED anti-panic emergency lighting IP65
