Discount 15%

Key features

POWERGEAR

3P POWERGEAR bar black

€28,95 €33,95(inc. VAT)

Made in Holland

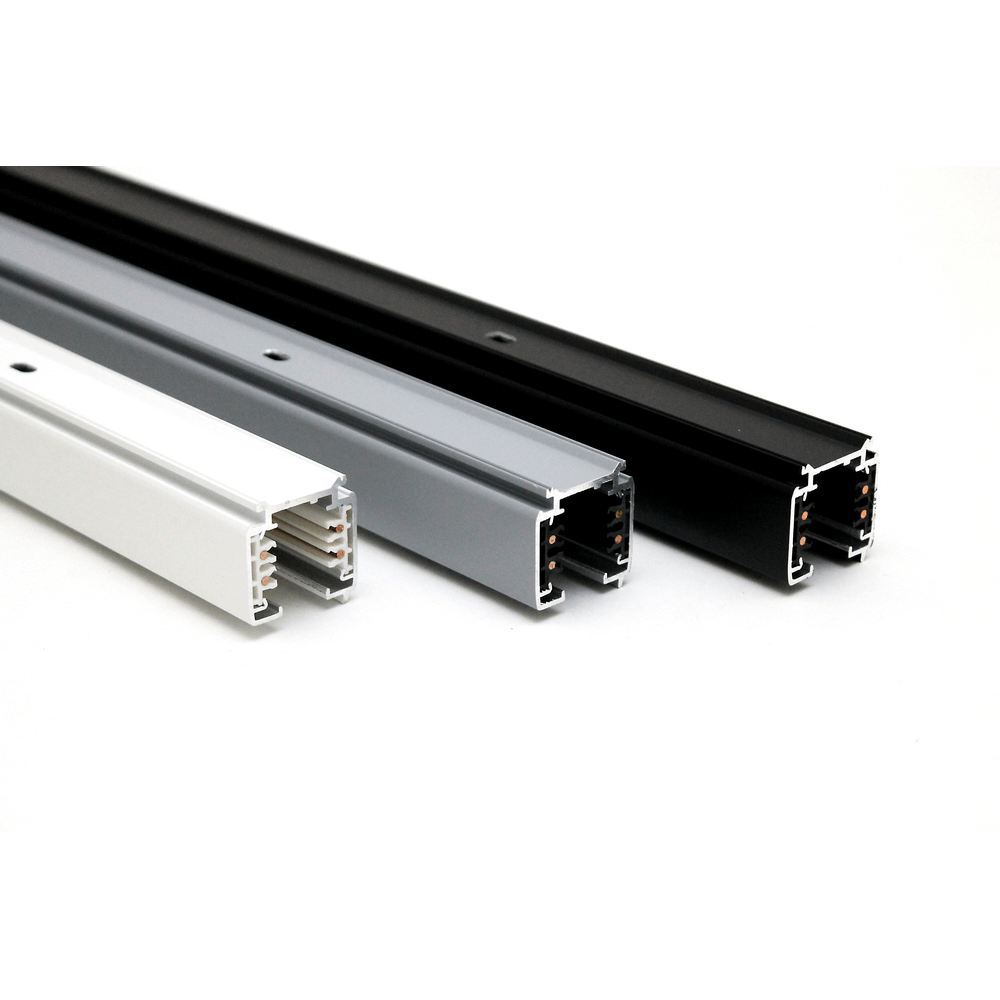

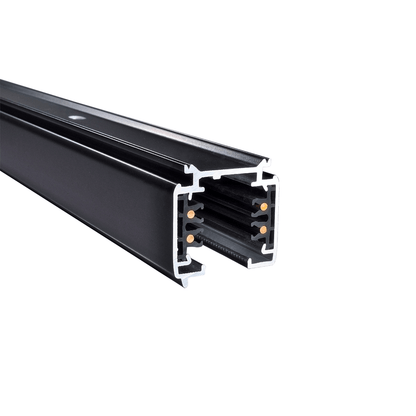

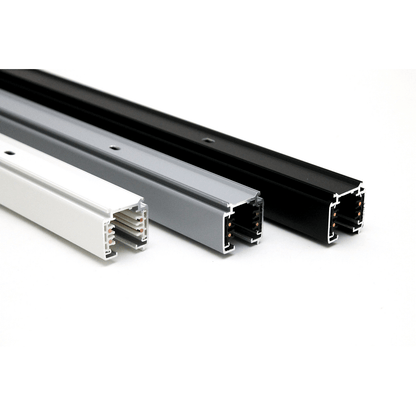

The POWERGEAR 3P rail is available in three sizes and three colours. The POWERGEAR 3 circuit rail is a high quality rail system. This bar system is designed for bar lighting with 3-phase adapters. The 3-circuit bar can be easily shortened and the "EZCLICK" mounting elements allow for quick and easy installation of the bar system. Once shortened, the rail is immediately ready for installation and there is no need to modify the wires.

▾ Show more

Key features

Size: 1m

1m
2m
3m

Product variants

Option: Black

In stock, ready to ship In stock at the supplier (we will deliver by 4–12 days)

Personal collection available at ILUMIX light

Usually ready in 4 hours

Technical data

SKU:

PRO-0410-B

Mounting Option:

Surface","Pendant

Material:

Aluminium

Dimension:

35x35x1000mm

Voltage:

230V / 16A

Warranty:

2 years

Surface finish:

Black

Assembly instructions

Download instructions

Data sheet

Download data sheet

Recommended combination:

Quality first

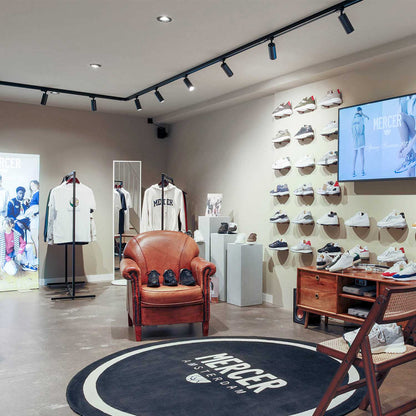

The professional 3P surface-mounted track offers a flexible and modern solution for installing track lighting in both commercial and residential projects. Thanks to its three-circuit system, it allows for independent control of up to three lighting circuits within tracks single tracks, offering maximum freedom in designing lighting for showrooms, stores, offices, restaurants, and modern interiors. The track is compatible with most professional 3P luminaires and adapters.

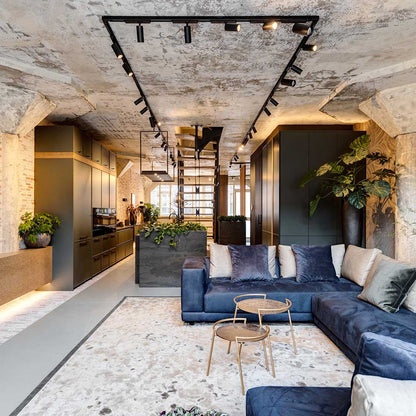

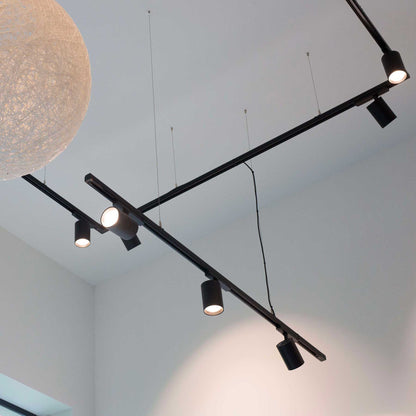

The strip can be installed flush against the ceiling or elegantly suspended in the space using a hanging system, making it an ideal solution for higher ceilings, open interiors, or modern architectural projects. Its minimalist design and clean lines fit perfectly into both modern and industrial spaces.

Simple and quick installation thanks to the EZCLICK system

3P The track system is designed for the simplest and fastest installation possible. Thanks to the innovative EZCLICK system, individual components, connectors, and accessories can be easily and securely connected without complicated assembly. Installation is thus significantly faster, cleaner, and more efficient compared to conventional track systems.

EZCLICK also ensures a secure and reliable connection between the individual components of the track system, a feature appreciated not only by professional installation companies but also by architects and contractors working on modern lighting projects. The system allows for easy expansion or modification of the lighting setup in the future without complicated changes to the installation.

Frequently Asked Questions (FAQ) about the 3P track system

What does the 3P (3-circuit) track system mean?
The 3P rail allows for independent control of up to three lighting circuits within tracks single tracks. This makes it possible to turn on or dim different groups of lights separately without having to install multiple separate track.

What is the difference between a 1F and a 3P track?
The 1F busbar allows all lights to be controlled together in a single circuit. The 3P system offers three independent circuits, providing significantly greater flexibility in lighting design for both commercial and design spaces.

Can the rail be used as both a surface-mounted and a suspended fixture?
Yes, the strip can be installed directly on the ceiling as a surface-mounted fixture or elegantly suspended in the space using a suspension system. This makes it suitable for a wide range of interiors and architectural projects.

Can the strip be cut to size?
Yes, the 3P track can be cut to the desired length depending on the specific installation. This allows for maximum flexibility in lighting design. The track can simply be cut to length without the need to adjust the contacts.

Which lighting are compatible with the track?
The track is compatible with most professional 3P track lighting fixtures and adapters designed for three-circuit systems.

Can the lights in the strip be moved at any time?
Yes, one of the main advantages of the track system is the ability to easily move, add, or reposition lights without having to modify the electrical wiring.

What material is the trim made of?
The rail is made of high-quality aluminum with an emphasis on strength, durability, and a professional appearance suitable for modern architectural projects.

FAQs

You can find more tips and advice in our Lighting Academy.

Frequently asked question

The 3P POWERGEAR track allows for quick and easy installation thanks to the EZCLICK mounting system. The track can be installed flush against the ceiling or suspended using a hanging system. There is no need to adjust the wires after cutting tracks to size.

Frequently asked question

3P The track system allows for independent control of up to three lighting circuits in a single track. This provides considerable flexibility in designing lighting for various spaces, from commercial to design projects.
